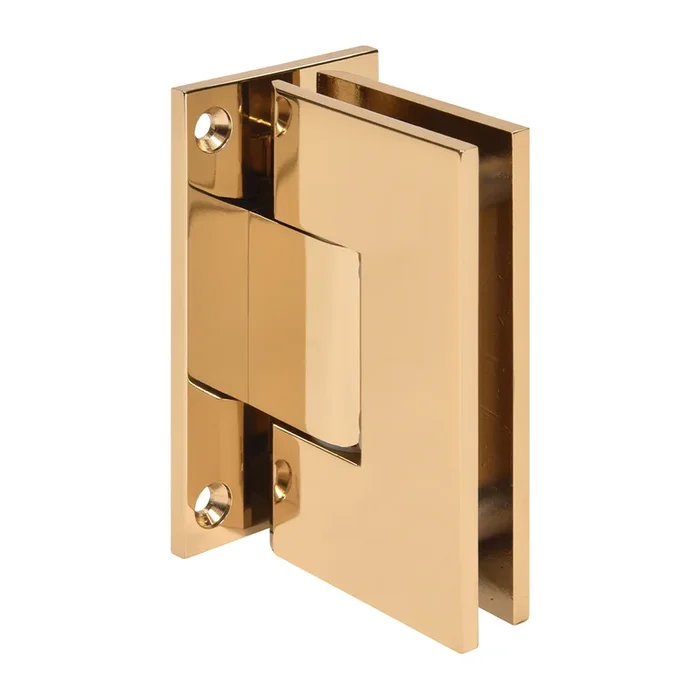

French Gold Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge

Description

CRL V1E337FG Vienna 337 Series Adjustable Wall Mount Hinge with Full Back Plate – French Gold

C.R. Laurence V1E337FG French Gold Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge combines elegance with innovative functionality, making it an ideal choice for modern shower doors. Designed to accommodate monolithic tempered glass, this hinge is adjustable to any angle up to 90 degrees without the need to remove the door. This unique feature allows for easy installation and precise alignment, enhancing both aesthetics and usability. Constructed from solid brass, the hinge is available in several beautiful finishes, including the luxurious French Gold option. With a self-centering mechanism that activates within 15 degrees of the closed position, this hinge ensures your door remains securely in place. It supports door weights of up to 110 lbs. (50 kg) with two hinges or 140 lbs. (63 kg) with three, accommodating glass thicknesses of 3/8″ (10 mm) to 1/2″ (12 mm). The inclusion of a reversible pivot pin allows for customization based on your installation needs, and custom pivot pins are available for off-angle applications. Designed for residential or hotel shower use, the CRL Vienna hinge offers a three-year warranty for added peace of mind. Transform your space with the elegance and functionality of the CRL V1E337FG hinge.

French Gold Vienna 337 Series Adjustable Wall Mount Full Back Plate Hinge

• Adjustable to Any Angle Up to 90 Degrees without Removing Door
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Adjustable Wall Mount Full Back Plate
• Use Monolithic Tempered Glass

The CRL Adjustable Vienna Series has taken our popular Vienna Hinge to a new level. Adjustment to accommodate the desired angle (up to 90 degrees) is done after the door is hung. Simply loosen the Allen set screws and turn the door to the desired closed position. By merely tightening the Allen screws your door will self-center to the desired closed position. The door can swing 90 degrees inward and 90 degrees outward (adjusting angle from factory set position will reduce 90 degree swing in that direction). For doors pulling outwards only (using a clear door jamb), you can adjust the hinge to close 5 degrees inside the shower area, thus having the door close snugly against the jamb.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate “off-angle” installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36″ (914 mm).

Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36″ (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8″ (10 mm) to 1/2″ (12 mm) Tempered Safety Glass

Special Feature: Adjustable to Any Angle Up to 90 Degrees without Having to Take Door Down

Construction: Solid Brass

Hinge Swings: 90 degree In and 90 degree Out (at factory set position).

Closing Type: Self-Centering when within 15 degree of closed position.

Cut-Out Required

Includes: Gaskets, Screws, and Glass Fabrication Dimensions.

Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

NOTE: Door Glass Width May Require Alteration From Standard Clearance Deductions When Adjusting Angles. Call for Details.

Custom finishes are available on request. Contact CRL Technical Sales Shower Door Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

5 Degree Pre- Set: No

Adjustable: Yes

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: French Gold

Glazing Thickness: 1/2 in. (12 mm)

Height: 3-15/16 in. (100 mm)

Material: Brass

Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Maximum Door Weight – 2 Hinges: 110 lbs. (49.9 kg)

Maximum Door Weight – 3 Hinges: 140 lbs. (63.5 kg)

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Wall Mount

Positive Close: No

Self- Centering: Yes

Series: Vienna

Shipping Limitations: None

Width: 2-1/4 in. (57 mm)
