Description

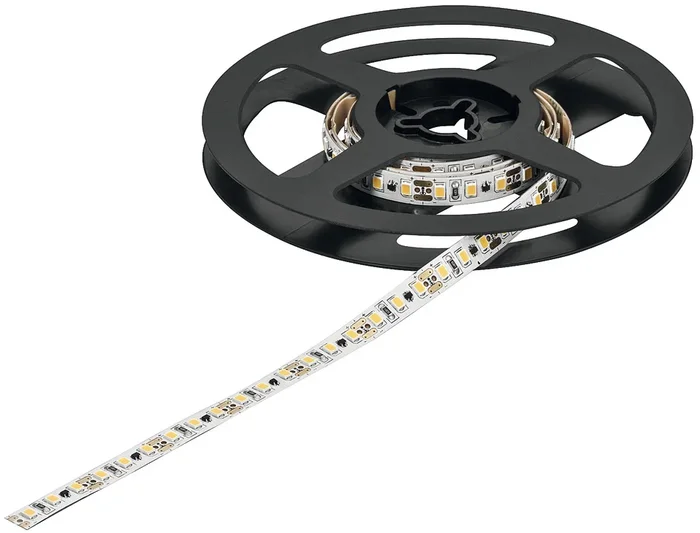

Hafele 833.74.374 Hafele Loox5 LED 2077 Flexible Strip Light, 12V Monochrome, 8mm
Hafele 833.74.374 Flexible Strip Light, Hafele Loox5 LED 2077, 12 V, is designed to provide versatile and efficient lighting solutions. With a luminous efficacy of 94 lm/W and a luminous flux of 900 lm/m, this strip light delivers bright, cool white illumination at a color temperature of 4000 K, ideal for any modern setting. The 5-meter length allows for extensive coverage, while the self-adhesive installation makes it easy to apply in various applications, including caravans, behind furniture, and boats. Equipped with high-quality Samsung® LEDs and Häfele’s constant current technology, this strip light ensures uniform brightness across its entire length, enhancing visual appeal without noticeable drop in luminous flux. It is also protected from short-term voltage peaks up to 16 V, ensuring a longer service life. The strip is dimmable, allowing you to create the perfect ambiance for any occasion. With an IP20 degree of protection, it is suitable for indoor use. Measuring just 1/16″ in height and 5/16″ in width, it can be discreetly installed in tight spaces. For optimal performance, it is recommended to order the lead separately and consider using an aluminum profile for sections over 9.6 W/m. Transform your lighting design with Hafele’s innovative solutions.
Flexible Strip Light, Hafele Lighting LED 2077, 12 V, monochrome constant current, (5/16″) 8 mm
120 LEDs/m, 9.6 W/m, Cool white 4000 K, (196 7/8″) 5 m available length
Häfele constant current technology Uniform brightness over the entire band length Longer service life, visual band length, luminous efficiency Protected from short-term voltage peaks up to 16 V Equipped with high-quality Samsung® LEDs
Max. strip length (visual): 6.2 m (244 1/8″) Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%. Suitable for use within closet storage spaces when utilized with profile and lens.
Attributes
Area of application: Caravans, behind furniture and objects, Ceiling light direct/indirect, Boats
Color: White
Color temperature: 4,000 K
Contact surface length: 4.00 mm
Degree of protection: IP20
Dimmable: yes
Energy efficiency class: F
Height (inch): 1/16″
Installation: Self-adhesive
Length (inch): 196 7/8″
Light color: Cool white
Luminous efficacy: 94 lm/W
Luminous flux/m: 900 lm
Material: Plastic
Max. strip length (visual): 6.20 m
Nominal voltage: 12.00 V
Order reference: Please order lead separately. Aluminum profile is recommended from 9.6 W/ m.
Section length: 25.00 mm
Strip height: 1.30 mm
Strip length: 5.00 m
Strip width: 8.00 mm
Supplied with: 1 roll
Wattage/m: 9.60 W
Width (inch): 5/16″
Resources
- CAD data
- Certificate
- Hafele_Lighting_ 2024 | Page 25
- Hafele_Lighting_ 2024 | Page 36
- Loox – Electrical Code Compliance
- Planning data LDT (DIALux)
- Safety Notes for LED Strip Lights
- Technical data sheet
- UL Certificate E473379 – US
