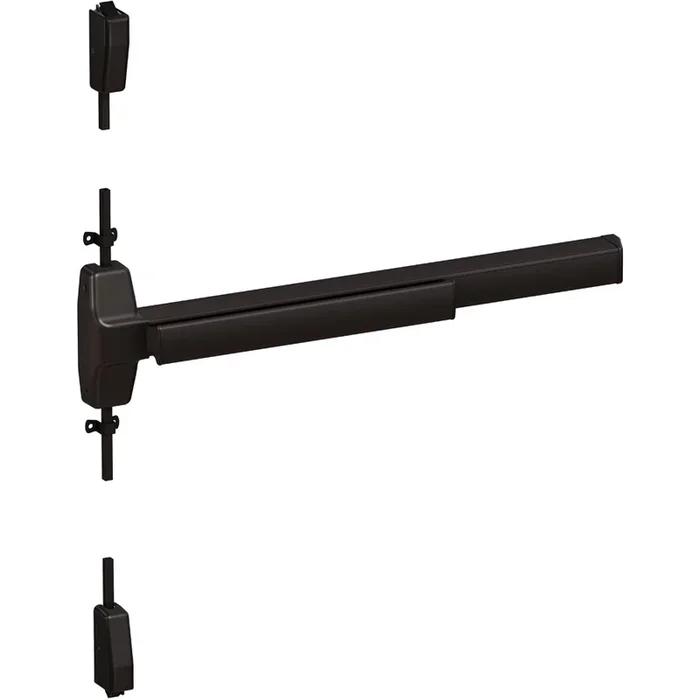

Fire-Rated SVR Grooved Exit Device by Von Duprin – 36in x 84in, Grade 1, Dark Bronze

Description

Von Duprin 9927EO-F-710-36 Fire-Rated SVR Grooved Exit Device, Exit Only No Trim, 36×84, Grade 1, Dark Bronze

Von Duprin 9927EO-F-710-36 Fire-Rated Exit Device delivers robust security and reliable performance for high-traffic environments. Designed for 36-inch by 84-inch doors, this surface vertical rod (SVR) exit device is certified to ANSI/BHMA A156.3 Grade 1 standards and is UL listed for fire exit hardware, ensuring compliance with safety regulations. The device features a grooved mechanism case, enhancing durability while maintaining a sleek appearance. With a deadlocking anti-friction latch bolt that offers a 5/8-inch throw, the 9927EO ensures secure closure while facilitating smooth operation. The device is equipped with vertical rods made from sturdy ½-inch square tubing, accommodating doors up to 7 feet tall. For added protection, optional rod and latch guards are available, safeguarding against impacts from carts or gurneys. The 9927EO is an exit-only device, making it ideal for emergency exits. Its standard dark bronze anodized finish not only enhances aesthetics but also provides resistance to wear. With a recommended door undercut of ¼ inch and a centerline height of 39-5/8 inches from the finished floor, installation is straightforward. This exit device is an excellent choice for building professionals seeking reliability and safety in their security hardware solutions.

Fire-Rated (No Dogging), SVR (Surface Vertical Rod) Grooved Exit Device, Exit Only No Trim, 36in x 84in, Grade 1, 710/11P Dark Bronze

Notice: The info below is not item specific.

9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2’ – 2’ (610 mm) Door size.
• 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
• 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
• Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
• Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
• Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
• Projection:
• Push bar neutral – 3-13⁄16″ (97mm).
• Push bar depressed – 3-1⁄16″ (78mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
• Door Undercut: 1⁄4″ (7mm) recommended.
• Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
• Vertical Rods:
• 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
• Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX :Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• WS: Tornado and hurricane tested
• Dogging Options: No mechanical dogging; QEL options available
• Strikes:
• Top – 299F –(499F LBR) Dull black
• Bottom – 304L – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome (antimicrobial)
• 628 – Aluminum, anodized
• 710 – Dark brown, anodized
• 711 – Flat black
• 643E – Aged bronze

Features

• WS: Tornado and hurricane tested
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device.
• Projection:
• Push bar neutral – 3-13⁄16″ (97mm).
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw.
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• 1⁄2″ square tubing, standard rods accommodate 7’ (2134mm) doors. Top rod length: 34-15⁄16″ (887mm).
• Vertical Rods:
• EL: Electric latch retraction
• SNB: Sex bolts
• Dogging Options: No mechanical dogging; QEL options available
• Mechanism Case: 2-1⁄4″ x 2-1⁄4″ (57mm x 57mm).
• Top – 299F –(499F LBR) Dull black
• Top and Bottom Latch Case: 4-1⁄2″ x 2-1⁄8″ x 1-1⁄2″ (114mm x 54mm x 38mm).
• CON: Allegion Connect
• -2: Double cylinder
• Center Case: 8″ x 2-3⁄4″ x 2-3⁄8″ (203mm x 70mm x 60mm).
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Fasteners & Sex Bolts: Includes screw pack for 1-3⁄4″ (44mm) to 2-1⁄4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. (optional 425 SNB available).
• Mechanical Options:
• 3’ – 2’ 4″ to 3’ (711mm to 914mm) Door size.
• WP-RX: Waterproof request to exit
• Bottom rod length: 31-1⁄2″ (794mm). Extension rods available in 3’ (914mm) for doors over 7’ One piece top rod is available for 8’ (2438mm) and 10’ (3048mm) doors.
• PL: Pullman latch
• Device Lengths:
• 2’ – 2’ (610 mm) Door size.
• E: Electric locking and unlocking trim
• SS: Signal switch
• ESL: Emergency secure lockdown
• 4’ – 2’ 10″ to 4’ (864mm to 1219mm) Door size.
• Bottom – 304L – Unfinished
• Electrified Options:
• LX: Latch bolt monitor switch
• QM: Quiet mechanical
• Push bar depressed – 3-1⁄16″ (78mm).
• Strikes:
• CX :Chexit delayed exit
• SEC: Security screws
• Door Undercut: 1⁄4″ (7mm) recommended.
• Device Centerline from Finished Floor: 39-5⁄8″ (1006 mm).
• LBR: Less bottom rod
• RX2: Double request to exit
• WH: Weep holes

Attributes

Alternate Codes: 9927EO-F-710-36, 9927EOF71036, VON9927EO-F 313 36, VON9927EO-F-313-36, VON9927EO-F313-36, VON9927EO-F-313AN, VON9927EO-F-313AN-, VON9927EO-F313AN

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Surface Vertical Rod Exit SVR

Finish Code: 710

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Duranotic Dark Bronze

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Manufacturer: Von Duprin

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Standard Rim Fire, Vertical Rod Bottom Strike
