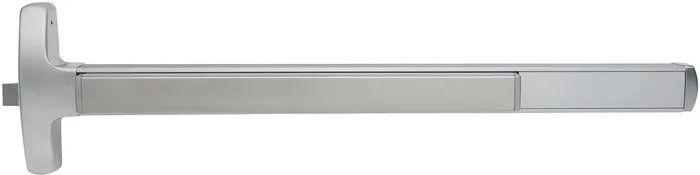

Fire Rated Narrow Stile Rim Exit Device – Falcon Lock 48in

Description

Falcon Lock F24R-EO-710-48 Fire Rated Narrow Stile Rim Exit Device, 48in, Less Dogging, Dark Bronze

Falcon Lock F24R-EO-710-48 Fire Rated Narrow Stile Rim Exit Device offers reliable and efficient egress, tailored for heavy-traffic environments such as offices, banks, and retail stores. This exit-only device is designed with a sleek, narrow stile profile, making it ideal for storefront applications with aluminum doors. Constructed from extruded aluminum, it provides enhanced strength and impact resistance, ensuring longevity even under continual use. The F24R-EO features a stainless steel push pad cover that resists scratches, while its flush-end caps prevent damage from abuse. With no exposed screws or rivets, it maintains a clean and attractive appearance. This device is ANSI/BHMA Grade 1 certified and includes panic exit and fire exit hardware suitable for single and double door applications. Equipped with a 299F strike and a 3/4″ throw stainless steel latchbolt, the F24R-EO ensures security and ease of use. It can also be electrified to interface with building security systems, offering options for delayed egress and exit alarms. Fire-rated for up to 120 minutes, this exit device not only meets safety standards but also enhances the overall design of your building’s security system. With its dark bronze anodized finish, it combines aesthetics with functionality.

Fire Rated Narrow Stile Rim Exit Device, Exit Only, 48in, Less Dogging, 299F Strike, UL, Grade 1, 710/313AN Dark Bronze Anodized

Notice: The info below is not item specific.

The 24/25 series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse. The 24/25 series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency. The F-24-R series rim device combines sleek styling and durability with the protection of a fire-rated device. A narrow stile design allows for installation versatility. The F-24-R also features a single-point, rim type latch and can be electrified.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance
• Includes panic exit and fire exit hardware for single and double door applications
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
• One trim input design provides maximum versatility and ability to use various trims
• Stainless steel push pad cover provides a scratch-resistant pushing surface
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors

Functions:

• EO (01): Exit only, no trim.
• DT (02): Entrance by trim when actuating bar is locked down.
• NL (03): Entrance by trim when latchbolt is retracted by key. Key removable only when locked.
• TP (05): Entrance by thumbpiece. Key locks or unlocks thumbpiece.
• L or K (08): Entrance by knob or lever. Key locks or unlocks knob.
• L(NL) or K(NL) (03): Entrance by knob or lever when latchbolt is retracted by key. Lever/knob is rigid. Key removable only when locked.

Lever Designs:

• Avalon (AVA): Projection 3-1⁄4″
• Quantum (QUA): Projection 3-1⁄4″
• Dane (DAN): Projection 3″
• Broadway (BRW): Projection 3-1⁄5″
• Boardwalk (BRK): Projection 3-1⁄5″
• Danish (DSH): Projection 2-9⁄10″
• Latitude (LAT): Projection 3-1⁄10″
• Longitude (LON): Projection 3-1⁄10″
• Sutro (SUT): Projection 3-1⁄4″

Specifications:

• Hand: Non-handed.
• Functions: F-24-REO (exit only) has all functions built in. Order trim with the device, or add it later.
• Strikes: 299F strike standard.
• Latchbolt: Stainless steel, 3⁄4″ throw.
• Deadlocking latchbolt: Standard.
• Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″
• Projections: 2-3⁄4″ maximum.
• Mounting height: 40″ from CL to finished floor.
• Electric functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed. Furnished with all machine screws.
• Sex bolts: Required when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 4 – 425 (# 10-24) SNB and 2 – 325 (1⁄4″ -20) SNB. For devices with trim, specify 4 – 425 (# 10-24) SNB.
• Center case & working parts: Investment-cast ferrous alloy with heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4″ thick, specify SK24-R.

Stock Sizes:

Single Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-24-R	3’	299-F	3-1⁄2″	2’ 7-1⁄2″
F-24-R	4’	299-F	3-1⁄2″	3’ 1-1⁄2″

Double Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-24-R	3’	299-F x F-4023	4″	2’ 7-1⁄2″
F-24-R	4’	299-F x F-4023	4″	3’ 1-1⁄2″

Finishes:

• US3/605 – Bright brass
• US4/606 – Satin brass
• US10/612 – Satin bronze
• US11/643e – Aged bronze
• US15/619 – Satin nickel
• US19/622 – Matte black
• US26/625 – Bright chrome
• US26D/626 – Satin chrome
• US28/628 – Anodized aluminum
• US32/629 – Bright stainless steel
• US32D/630 – Satin stainless steel
• 313AN/710 – Anodized duranodic

Attributes

Alternate Codes: F24R-EO-313AN-48, F24REO313AN48, FALF24R-EO-313AN-48

Category: Glass Aluminum Hardware, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Center Line: 3′ 4″

Certifications: A156.3, ANSI, UL 305, UL/cUL Listed 3 Hour

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Hollow Metal Frame

Door Thickness: 1-3/4″

Door Type: Hollow Metal

Exit Device Category: Rim device

Finish Code: 313AN, 622, 695

Finish Color: Black, Dark Bronze, Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Duranotic Dark Bronze, Flat Black, Flat Black Coated, Matte Black, Sprayed Duranotic

Fire Rated: Yes

Fire Rating: 120 min, 90 min

Function: Exit Only

Grade: Grade 1

Manufacturer: Falcon Lock

Series: 24

Strike Type: Fire Rated Rim Strike, Standard
