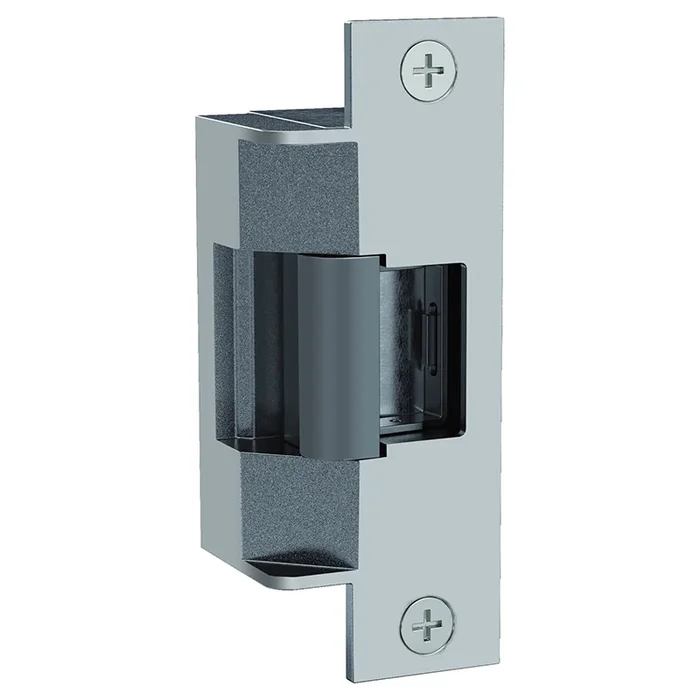

Fire Rated Electric Strike 12/24VDC – HES FS/FSE for Cylindrical Latches

Description

HES 7501-630-LBM Electric Strike, Latchbolt Monitoring, Satin stainless

The 7501 series electric strike is ideal for fire rated applications with preload conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind. The heavy duty stainless steel construction provides the strength and durability required to accommodate fire-rated latchbolts up to 3/4″ throw.

Attributes

Adjustability: Horizontal

Alternate Codes: 7501-630-LBM, 7501630LBM

Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC

Baa Qualified: Yes

Category: Access Control, Electric Strikes

Commercial Residential: Commercial

Configuration: Centered

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Shape: Flat Face, Square Corners

Faceplate Size: 4-7/8″ x 1-1/4″

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

For Use With: Cylindrical Locks

Frame Application: Metal or Wood

Frame Material: Metal|Wood

Function: Fail Safe/Fail Secure

Grade: Grade 1

Installation: Commercial

Keeper Size: 3/4″

Latchbolt Accommodation: Up to 3/4″

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt Monitoring

Operating Voltage: 12/24 VDC

Origin: USA

Pack Qty: 1

Pre Load: 15 lbs.

Series: 7501 Series Electric Strikes

Shim Type: Field Adjustable

Strike Base Width (in): NA

Strike Body Depth (in): 1.6875

Strike Body Height (in): 4.87

Subtype: Electric Strikes

Surface Mounting: Cutting required

Switch Type: Latchbolt Monitor

Tamper Resistant: Yes

Type: Electric Strikes

Unit of Measure: Each

Upc: 7.4009E+11

Voltage: 12/24

Warranty: SecuriCare five-year, no fault, no questions asked warranty
