Description

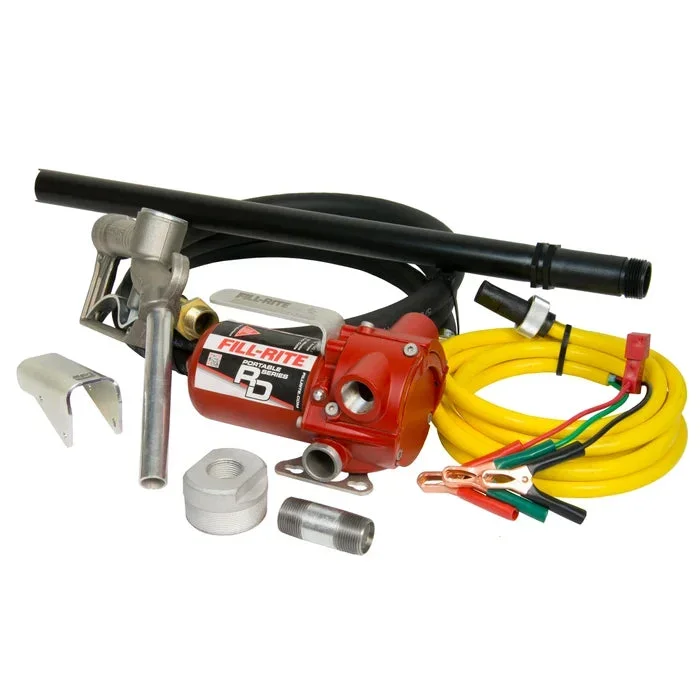

The RD812NP model is a 12V DC, 8 GPM portable fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components.
Features
-
Powder-Coated Exterior thick powder-coated exterior provides elite protection from corrosion and tough environmental conditions
-
Cast-Aluminum Construction built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance
-
Completely Configurable adjustable design allows you to position inlet and outlet flanges for your specific application, making the RD perfect for tight spaces
-
Versatile Mounting versatile design allows you to mount pump directly to a tank, set it on the ground, or even hold it during filling
-
Quick-Connect Power detachable power cord makes operation, transportation, and storage more convenient, while also providing additional security measure
-
Compact Size weighing under 8 pounds, can be easily transported or held during operation
Specifications
Max Flowrate: 8
Flowrate Range: 0-8GPM
Inlet / Outlet Thread Size: (in.) 0.75 / 0.75
Duty Cycle: 30 min
Motor Power: 0.17
Power Type: DC
Current Range: 14
Operating Temperature Range: -17°F to 105°F
Suction Lift: (ft.) 6
Dry Vacuum: (in. Hg) 5
Max Discharge Pressure: 16
Discharge Head: (ft.) 3
Max Operating Pressure: (PSI) 16
Strainer Mesh Size: (micron) 20×20
Assembled Product: Height x Width x Depth (in.) N/A x N/A x 4.6
Assembled Product Weight (lbs.): 9.4
Package: Height x Width x Depth (in.) 7.5 x 9 x 17.88
Gross Weight (lbs.): 18.000
