Description

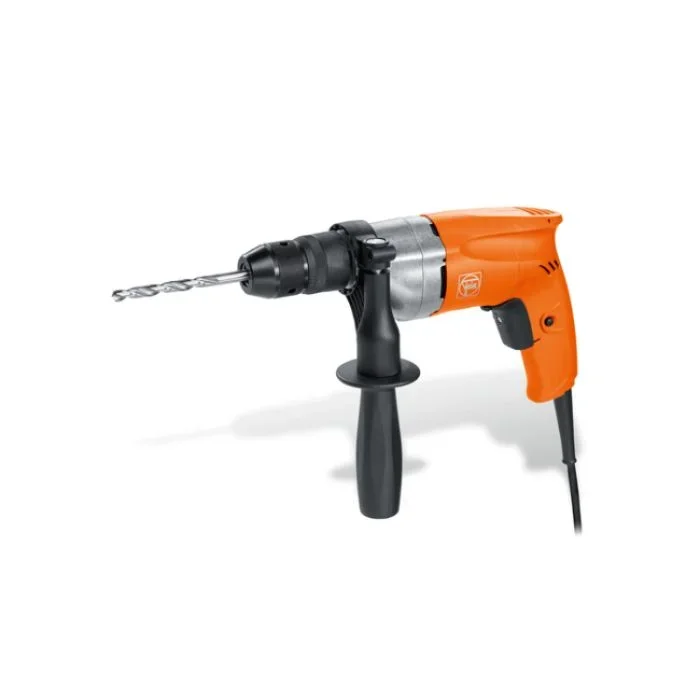

Compact and powerful single-speed power drill with 3/8″ capacity in steel, for installation work on site.
More Information
| Manufacturer |
Fein Power Tools |
| Condition |
New |
| UPC |
04014586882482 |
| Features |
- Flat, slim design requiring little clearance in corners, for installation work, even in tight locations and in corners
- Fein high performance motor with excellent speed stability for steady drilling progress in practically every application
- Torsion-free, barrel-type motor housing with metal gear head for superb service life
- Forward/reverse operation
- Precision metal 3-jaw chuck
- High concentricity
- Retracting chuck jaws
- Fein sensitive handle
- Electronic start
- 1 11/16″ collar diameter for use in drill jigs
|
| Includes |
- Supra SKE Single-Collar, Metal Fast-Acting 3-Jaw Chuck
- Additional Handle
|
| Application |
Twist Drilling, Tapping, Countersinking |
| Electric Brake |
No |
| Variable speed |
No |
| Type |
Hand Drill |
| Power Consumption (Watt) |
500 W |
| Power Output (Watt) |
270 W |
| Full Load Speed (RPM) |
0 – 900 RPM |
| No Load Speed (RPM) |
0 – 1,500 RPM |
| Torque at Maximum Output Power |
80 in/lbs |
| Stall/Blocking Torque |
212 in/lbs |
| Chuck Capacity |
1/16″ – 1/2″ |
| Capacity in Steel Diameter |
13/32″ |
| Capacity in Stainless Steel Diameter |
1/2″ |
| Capacity in Light Alloy Diameter |
1/2″ |
| Capacity in Wood Diameter |
1 3/16″ |
| Tapping |
M 6 |
| Drill Shaft Thread |
1/2″ – 20 UNF |
| Clamping Neck |
1 3/4″ |
| Minimum Clearance |
7/8″ |
| Cable with Plug |
16.4′ |
| Weight |
3.97 lbs |
| Sound Pressure Level LpA |
82 dB |
| Measurement Uncertainty of the Measured Value KpA |
3 dB |
| Sound Power Level LWA |
93 dB |
| Measurement Uncertainty of the Measured Value KWA |
3 dB |
| Peak Sound Value LpCpeak |
96 dB |
| Measurement Uncertainty of the Measured Value KpCpeak |
3 dB |
| Vibration Value 1 αhv 3-Way |
αh,D 3,0 m/s² |
| Measurement Uncertainty of the Measured Value Kα |
1,5 m/s² |
