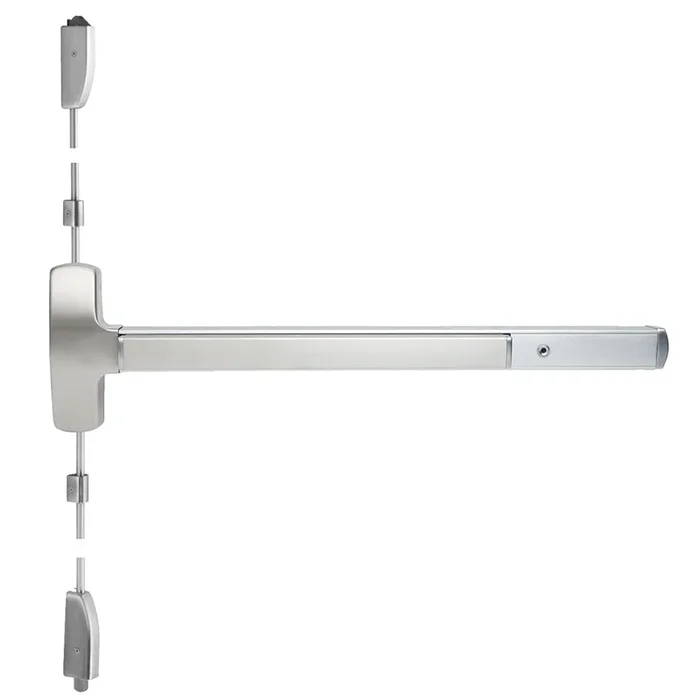

Falcon SVR Exit Device – Exit Only 3′ for Security and Safety

Description

Falcon Lock 25-V-512DT 3 26D SVR Exit Device, 3′ Exit Only

Falcon Lock 25-V-512DT 3 26D SVR Exit Device is engineered for high-traffic environments, combining durability and security with a sleek, surface-applied design. This Grade 1 surface vertical rod exit bar features a wide stile pushpad and is designed for doors up to 84 inches high, making it ideal for a variety of applications such as offices, retail spaces, and healthcare facilities. The device is 36 inches in length and offers a dummy function, ensuring ease of use while maintaining aesthetic appeal. The hex key dogging mechanism adds convenience for secure locking, and the satin chrome finish provides a modern look that complements any décor. Non-handed and suitable for both wood and metal doors, this exit device ensures maximum flexibility in installation. With patent pending deadlocking technology and a choice of A or B label fire ratings, the Falcon 25-V Series is a smart choice for building professionals seeking reliable exit solutions. Its robust construction is matched by a streamlined design, ensuring safety without sacrificing style. Whether you’re working on new construction or a retrofit project, this exit device meets the demands of both commercial and residential applications. Choose the Falcon Lock 25-V-512DT for a dependable, high-quality exit solution.

SVR Exit Device, Exit Only 3′

Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 84″ Door Height, Dummy Function, Escutcheon Pull Trim, Hex Key Dogging, Satin Chrome Finish, Non-Handed

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation.

Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.

A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.

Features:

• Maximum flexibility in a variety of applications
• Wide range of features and options
• Patent pending deadlocking technology

Applications:

• Frequent traffic
• Offices, churches, hospitality, retail, education, healthcare
• Interior, exterior, new construction, retro-fit

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3-2001

Base Material: Brass or Bronze

Commercial Residential: Commercial

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 84″

Door Material: Wood or Metal

Door Thickness: 1-3/4″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Mechanical Function: Dummy

Minimum Stile Size: 3-1/2″

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Series: 25 Series Exit Devices

Strike Bottom: 3788

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 3788

Trim Design: Escutcheon Pull

Trim Part No: 512DT US26D

Trim Type: Pull

Type: Exit Devices

Unit of Measure: Each

Resources

• 19, 24, 25 and XX Series Exit Devices Service Manual
• 24 Series / 25 Series Sell Sheet
• 25 Series Exit Devices Cut Sheet
• 25-C Installation Instructions
• 25-M Installation Instructions
• 25-R Installation Instructions
• 25-V Installation Instructions
• 25-WDC Installation Instructions
• 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
• Falcon Motorized Electric Latch Retraction Kit Data Sheet
• Video: Falcon 25R Rim Exit Device Installation
• Von Duprin Finishes Chart
