Falcon Rim Exit Device – Exit Only 4′

Description

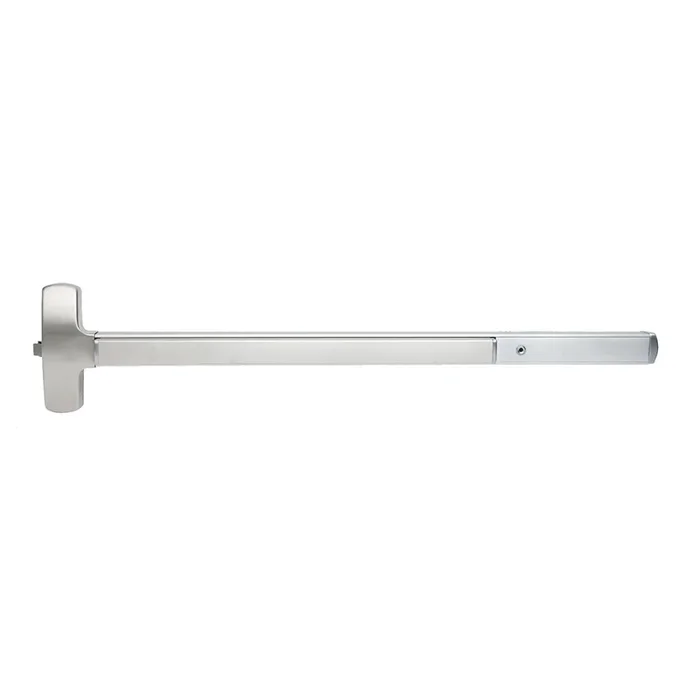

Falcon Lock 25-R-EO 4 32D Rim Exit Device, 4′ Exit Only

Falcon Lock 25-R-EO 4 32D Rim Exit Device is engineered for high-traffic environments, combining durability and ease of use. This Grade 1 rim exit device features a wide stile pushpad and is designed for exit only functionality, measuring 48 inches in length. Crafted from stainless steel with a sleek satin finish, it seamlessly integrates into various building aesthetics while ensuring reliable performance. Equipped with hex key dogging, this non-handed device is versatile enough for installation on both wood and metal doors with a thickness of 1-3/4 inches. The Falcon 25-R Series showcases a single-point rim latch and an innovative touch bar design, making it ideal for applications in offices, churches, retail spaces, hospitality, and healthcare settings.The device is also compatible with electrification options, providing an added layer of convenience and accessibility. With features such as patent-pending deadlocking technology and a choice of fire ratings, the Falcon 25-R-EO exit device adapts to various needs while maintaining a focus on safety and efficiency. Whether for new construction or retro-fit projects, Falcon’s commitment to quality ensures that this exit device meets the demands of your commercial space, offering flexibility and a refined user experience.

Rim Exit Device, Exit Only 4′

Grade 1 Rim Exit Bar, Wide Stile Pushpad, 48″ Device, Exit Only Function, Less Trim, Hex Key Dogging, Satin Stainless Steel Finish, Non-Handed

The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Architectural wide-stile push pad exit devices providing quality and durability at an affordable price.

A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined styling and a choice of wide-stile device applications means a smart solution for your building design, as well as its use.

Features:

• Maximum flexibility in a variety of applications
• Wide range of features and options
• Patent pending deadlocking technology

Applications:

• Frequent traffic
• Offices, churches, hospitality, retail, education, healthcare
• Interior, exterior, new construction, retro-fit

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3-2001

Base Material: Stainless Steel

Commercial Residential: Commercial

Device Length: 48″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Wood or Metal

Door Thickness: 1-3/4″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Mechanical Function: Exit Only

Minimum Stile Size: 4″

Pack Qty: 1

Pbs Options: 40135713

Physical Appearance: Wide Stile Pushpad

Series: 25 Series Exit Devices

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Type: Less Trim

Type: Exit Devices

Unit of Measure: Each

Resources

• 19, 24, 25 and XX Series Exit Devices Service Manual
• 24 Series / 25 Series Sell Sheet
• 25 Series Exit Devices Cut Sheet
• 25-C Installation Instructions
• 25-M Installation Instructions
• 25-R Installation Instructions
• 25-V Installation Instructions
• 25-WDC Installation Instructions
• 510L-NL/510L-DT 513K-NL/513K-DT Installation Instructions
• Falcon Motorized Electric Latch Retraction Kit Data Sheet
• Video: Falcon 25R Rim Exit Device Installation
• Von Duprin Finishes Chart
