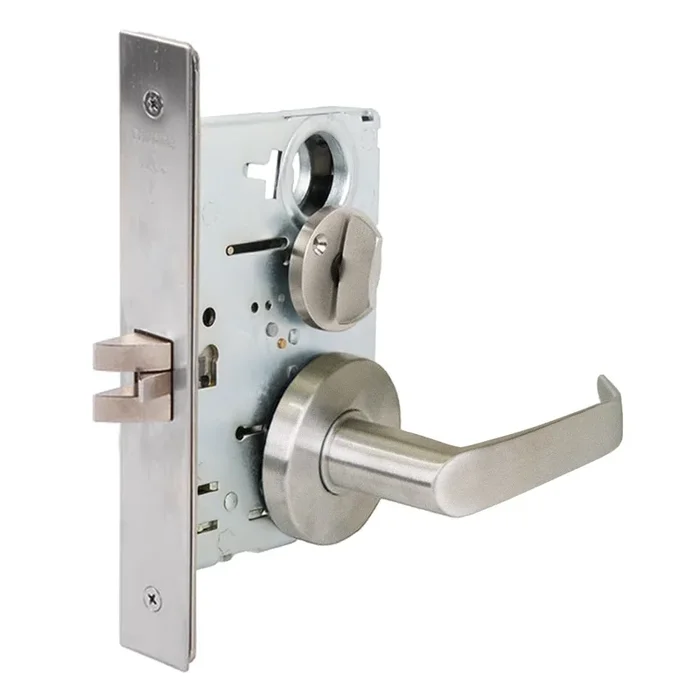

Falcon Privacy Mortise Lock – Secure, Reliable Door Hardware

Description

Falcon Lock MA321 DG 630 Privacy Mortise Lock Instructions

Falcon Lock MA321 DG 630 Privacy Mortise Lock offers Grade 1 security with a no entry lockout feature, making it an ideal choice for commercial applications such as offices, hospitals, and educational institutions. This non-keyed lock features a sleek Dane lever and Gala rose design, finished in satin stainless steel for a modern look that complements a variety of door styles. Built to withstand heavy use, the MA Series ensures reliable performance thanks to its cold-formed steel case with zinc dichromate plating. The lock accommodates door thicknesses ranging from 1-3/8″ to 2-1/2″ and has a standard backset of 2-3/4″. The robust two-piece stainless steel latch bolt features a 3/4″ projection, while the dead bolt boasts a 1″ throw with saw-resistant rollers for added security. Field-reversible handing allows for easy installation, and the interchangeable core cylinder simplifies re-keying, ensuring compatibility with SFIC products from other manufacturers. This UL-listed lock meets ANSI/BHMA 156.13 standards, making it a trusted choice for high-traffic environments. With its combination of durability and functionality, the Falcon MA321 is an essential addition to your security hardware lineup.

Privacy Mortise Lock

Grade 1 Privacy With No Entry Lockout Mortise Lock, Non-Keyed, Dane Lever, Gala Rose, Satin Stainless Steel Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1

Ansi Function: F22 – Privacy

Base Material: Stainless Steel

Bolt Projection: 3/4″ Latch

Bolt Throw: 3/4″ Latch

Commercial Residential: Commercial

Cylinder Type: Non-Keyed

Door Thickness: 1-3/4″ to 1-7/8″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: MA321-Privacy With No Entry Lockout

Function Family: Privacy

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Backset Dimension: 2-3/4″

Lever Knob: Lever

Leverknob Design: D – Dane Lever

Leverknob Design Family: Straight Return Lever

Lock Face Size: 8″ x 1-1/4″

Pack Qty: 1

Projection: 2-1/2″

Rose Escutcheon: Rose

Roseescutcheon Design: G – Gala Rose

Roseescutcheon Dimensions: 2-9/16″ Diameter

Screws: Combination

Series: MA Series Grade 1 Mortise Locks

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Anti-Friction Latch

Std Strike Height: 4-7/8″

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
