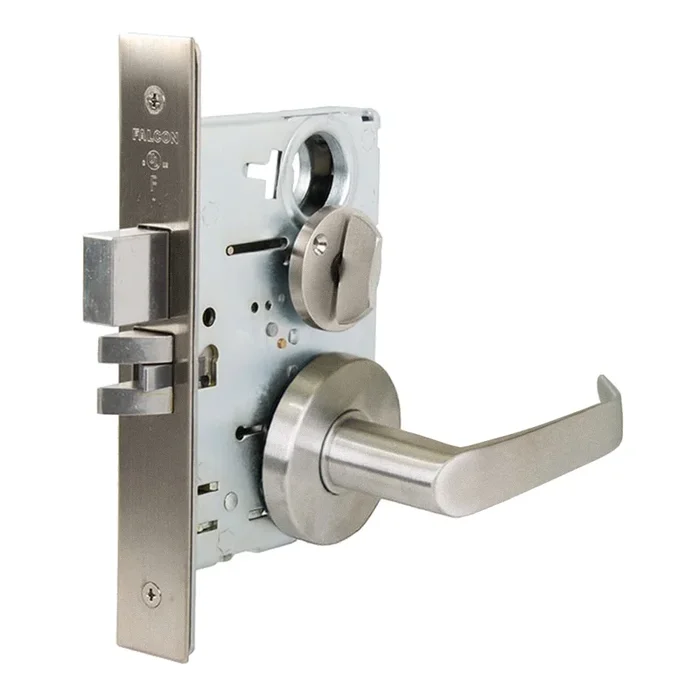

Falcon Lock MA301 DGM 630 Privacy Bedroom Mortise Lock Instructions
Falcon MA301 DGM 630 Privacy – Bedroom Mortise Lock combines robust security with user-friendly features, making it an ideal choice for commercial applications such as offices, hospitals, and educational facilities. This Grade 1 Privacy Mortise Lock is equipped with a Dane Lever and a Gala Rose design, featuring an outside indicator displaying “OCCUPIED/VACANT.” Crafted from cold-formed steel with a satin stainless steel finish, it ensures durability and a sleek aesthetic. Designed to accommodate standard door thicknesses from 1-3/8″ to 2-1/2″, the MA301 has a backset of 2-3/4″ and offers optional lead wrapping for added security. Its solid brass cylinder and plug allow for compatibility with 5, 6, or 7-pin configurations, and the interchangeable core makes re-keying simple. The heavy-duty through-bolted trim ensures a reliable fit, while the two-piece stainless steel latch bolt offers a mechanical anti-friction design, providing 3/4″ projection. With a 1″ deadbolt and reinforced faceplates, the Falcon MA301 meets ANSI/BHMA 156.13 standards and features a UL rating of 3 hours for added peace of mind. Elevate your door security with this dependable lock, backed by Allegion’s reputation for excellence.
Privacy – Bedroom Mortise Lock
Grade 1 Grade 1 Privacy Mortise Lock, Dane Lever, Gala Rose, Outside Indictor with Text OCCUPIED/VACANT, Satin Stainless Steel Finish Finish
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Ansi Function: F02 – Privacy
Application: Indicator with Text
Commercial Residential: Commercial
Finish: 630/US32D
Finish Family: Matte Silver
Function: MA301-Privacy Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: D – Dane Lever
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Roseescutcheon Design: G – Gala Rose
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
