Description

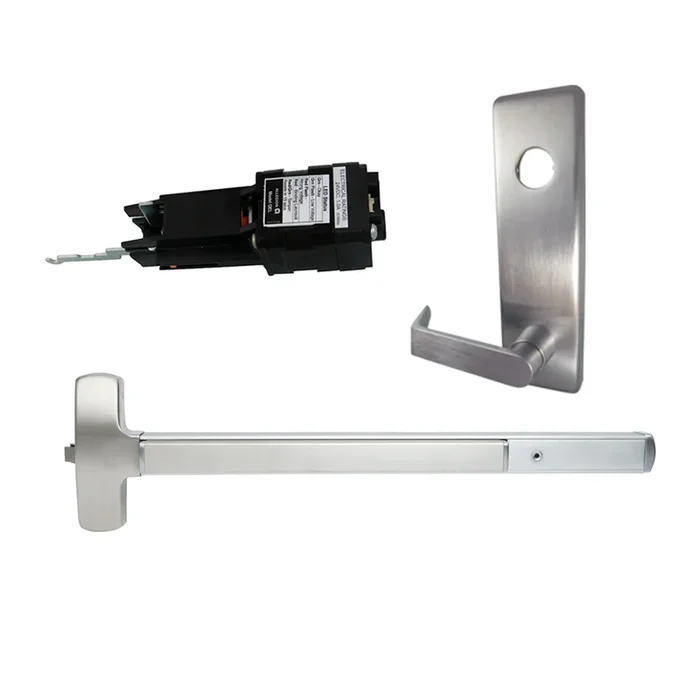

Falcon Lock MEL-25R-L-NL-DAN-US26D-48-LHR Motorized Electric Latch Retraction Rim Exit Device with Dane Lever Trim 510L-NL
Falcon Lock MEL-25R-L-NL-DAN-US26D-48-LHR KIT features a motorized electric latch retraction (MEL) system that ensures seamless electronic control of your exit device. This rim exit device, paired with the elegant Dane Lever Nightlatch Trim 510L-NL, is designed for both multifamily and commercial properties, offering a cost-effective solution without sacrificing security. With its Grade 1 rating and durable satin chrome finish, it exhibits both resilience and style. The MEL technology allows for quick egress while providing the flexibility of integrating with credential readers. This enables momentary unlatching for authorized users and can be configured for extended free entry, eliminating the need for mechanical dogging. Its self-calibrating motor assembly simplifies installation and troubleshooting, ensuring reliable operation.This device operates on a 24VDC power supply, consuming just 1 Amp, making it compatible with standard Schlage power supplies. The modular design allows easy conversion from existing mechanical Falcon 24 or 25 exit devices. Additionally, its vandal-resistant features react to tampering attempts, enhancing security.With a left-hand reverse/reversible configuration and a 48-inch length, the Falcon Lock MEL-25R is a practical choice for any professional seeking robust and efficient access solutions.
KIT – Motorized Electric Latch Retraction, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, (Requires 1-1/4 Mortise Cylinder), 48in, LHR Left Hand Reverse/Reversible, 24VDC1 Amp, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.
Features:
- MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
- Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
- Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
- On-board installation and troubleshooting diagnostics built into the motor assembly
- Self-calibrating motor assembly
- Push bar is pulled in electronically when dogged
- Vandal resistant – detects and responds to events of attack and tampering
- A power transfer (EPT, electrified hinge, door loop) provides a wiring path from the door to the frame. If an EPT (Electric Power Transfer) is utilized, the door and frame must be factory prepped.
Requirements:
- The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
- The MEL device is compatible with the following equipment: PS900 Series power supplies – PS902, 904, 906, 914; 900 Series Option Boards – 900-2RS, 900-4R and 900-4RL
- A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
Compatible Options:
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
EPT Options:
- EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
- EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A
Stock Sizes:
| Device | Door Size | Door Strike | Min Door Opening Width (Add 3.5″ to standard) |
|---|---|---|---|
| MEL-24-R | 3′ | 299 | 2′ 11″ |
| MEL-24-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-24-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-24-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-24-R | 4′ | 299 | 3′ 5″ |
| MEL-24-R | 4′ | 264 | 3′ 4 7⁄8″ |
| MEL-24-R | 4′ | 1439 | 3′ 4 1⁄4″ |
| MEL-24-R | 4′ | 1606 | 3′ 4 5⁄8″ |
| MEL-24-C | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-24-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-V | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-R | 3’ | 299 | 2′ 11″ |
| MEL-25-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-25-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-25-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-25-R | 4’ | 299 | 3′ 5″ |
| MEL-25-R | 4’ | 264 | 3′ 4 7⁄8″ |
| MEL-25-R | 4’ | 1439 | 3′ 4 1⁄4″ |
| MEL-25-R | 4’ | 1606 | 3′ 4 5⁄8″ |
| MEL-25-C | 3′ | All | 2′ 10 5⁄8″ |
| MEL-25-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-25-V | 4’ | All | 3′ 4 5⁄8″ |
Finishes:
- 605/US3 – Brass, Bright
- 606/US4 – Brass, Satin
- 613/US10B – Bronze, Oil Rubbed
- 619/US15 – Nickel, Satin
- 622/US19 – Black, Matte
- 625/US26 – Chromium, Bright
- 626/US26D – Chromium, Satin
- 629/US32 – Satinless Steel, Bright
- 630/US32D – Satinless Steel, Satin
- 643e/US11 – Bronze, Aged
Attributes
Alternate Codes: FALMELK-25R-L-NL-DAN-US26D-48-LHR, MEL-25R-L-NL-DAN-US26D-48-LHR, MEL25RLNLDANUS26D48LHR, MELK-25R-L-NL-DAN-US26D-48-LHR, MELK25RLNLDANUS26D48LHR
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
