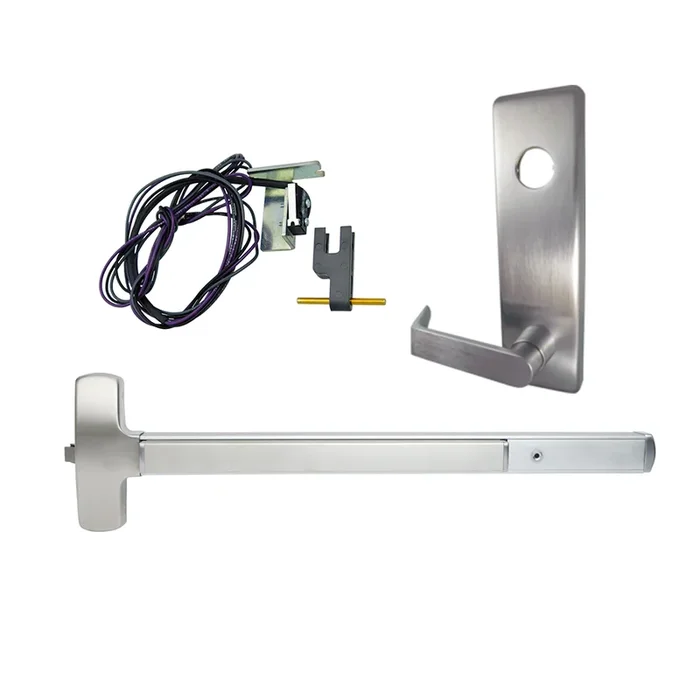

Falcon Lock KIT – RX Request to Exit Rim Exit Device with Dane Lever Nightlatch Trim 510L-NL

Description

Falcon Lock RX-25R-L-NL-DAN-US26D-36-LHR RX Request to Exit Rim Device w/ Dane Lever Nightlatch Trim, Satin Chrome

Falcon Lock RX-25R-L-NL-DAN-US26D-36-LHR KIT combines safety and efficiency with its advanced rim exit device and sleek Dane lever nightlatch trim. Designed for high traffic installations, this robust exit device features a single-point, rim-type latch complemented by a streamlined touch bar, ensuring quick egress while maintaining security. Constructed from durable extruded aluminum, the RX-25R offers enhanced strength and impact resistance, making it ideal for both commercial and residential settings. Its design eliminates exposed screws or rivets, resulting in a clean and attractive installation. The stainless steel push pad cover provides a scratch-resistant surface, contributing to its longevity. With a deadlocking latchbolt and a 3/4″ throw, this device ensures secure closure. The hex dogging feature is easy to operate and eliminates wear associated with threaded parts. It is also non-handed, providing flexibility in installation. The RX-25R is compatible with various electric functions, allowing integration with building security systems. This exit device meets ANSI grade 1 standards and comes with a standard 299 strike. Finished in a sophisticated satin chrome (US26D), it enhances the aesthetics of any door while delivering reliable performance. The Falcon Lock RX-25R is the perfect choice for those seeking a combination of style, security, and functionality.

KIT – RX Request to Exit, Rim Exit Device, Escutcheon x Dane Lever Nightlatch Trim 510L-NL, 36in, Hex Dogging, LHR Left Hand Reverse/Reversible Handing, 299 Strike, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4″ throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
• Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
• Projections: 2-3⁄4″ maximum, 2″ dogged.
• Mounting Height: 40-1⁄4″ from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 – 425 (#I0-24) SNB. For devices with trim, specify 2 – 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Door Stile (in)	Min Door Opening Width
25-R	3’	299	4″	2′ 7 1⁄2″
25-R	3’	264	3 7⁄8″	2′ 7 3⁄8″
25-R	3’	1439	3 1⁄4″	2′ 6 3⁄4″
25-R	3’	1606	3 5⁄8″	2′ 7 1⁄8″
25-R	4′	299	4″	3′ 1 1⁄2″
25-R	4′	264	3 7⁄8″	3′ 1 3⁄8″
25-R	4′	1439	3 1⁄4″	3′ 3⁄4″
25-R	4′	1606	3 5⁄8″	3′ 1 1⁄8″

• Double Door Application:

Device	Door Size	Strike x Mullion	Door Stile (in)	Min Door Opening Width
25-R	3’	299 x 2923	4 1⁄8″	2′ 7 1⁄2″
25-R	3’	299 x 4023	4 3⁄8″	2′ 7 1⁄2″
25-R	3’	264 x 2923	4″	2′ 7 3⁄8″
25-R	3’	264 x 4023	4 1⁄4″	2′ 7 3⁄8″
25-R	3’	1439 x 2923	3 7⁄8″	2′ 7 1⁄4″
25-R	3’	1439 x 4023	4 1⁄8″	2′ 7 1⁄4″
25-R	3’	1606 x 2923	4 1⁄4″	2′ 7 1⁄8″
25-R	3’	1606 x 4023	4 1⁄2 “	2′ 7 1⁄8″
25-R	4’	299 x 2923	4 1⁄8″	3′ 1 1⁄2″
25-R	4’	299 x 4023	4 3⁄8″	3′ 1 1⁄2″
25-R	4’	264 x 2923	4″	3′ 1 3⁄8″
25-R	4’	264 x 4023	4 1⁄4″	3′ 1 3⁄8″
25-R	4’	1439 x 2923	3 7⁄8″	3′ 1 1⁄4″
25-R	4’	1439 x 4023	4 1⁄8″	3′ 1 1⁄4″
25-R	4’	1606 x 2923	4 1⁄4″	3′ 1 1⁄8″
25-R	4’	1606 x 4023	4 1⁄2 “	3′ 1 1⁄8″
25-Vx 25-R	3’	1609	3 1⁄2″	2′ 7 5⁄8″ for 3 1⁄2″ Min stile
25-Vx 25-R	4’	1609	3 1⁄2″	3’ 1 5⁄8″ for 3 1⁄2″ Min stile

Finishes:

• US3/605 – Brass, Bright
• US4/606 – Brass, Satin
• US10/612 – Bronze, Satin
• US11/643e – Bronze, Aged
• US15/619 – Nickel, Satin
• US19/622 – Black, Matte
• US26/625 – Chromium, Bright
• US26D/626 – Chromium, Satin
• US28/628 – Anodized, Aluminum
• US32/629 – Stainless Steel, Bright
• US32D/630 – Stainless Steel, Satin
• 313AN/710 – Anodized Duranodic

Attributes

Access Type: Request to Exit

Alternate Codes: RX-25R-L-NL-DAN-US26D-36-LHR, RX25RLNLDANUS26D36LHR

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, UL 305

Device Width: 36″

Dogging: HD – Hex Dogging

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim device

Finish Code: US26D

Finish Color: Brushed Chrome

Function: Lever-Night Latch

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: Dane

Manufacturer: Falcon Lock

Series: 25

Strike Type: Rim Strike, Standard

Trim Option: Lever Trim
