Falcon Lock W511BD D 606 Grade 2 Entry/Office Lock Instructions
Falcon Lock W511BD D 606 Grade 2 Entry / Office Lock offers a reliable and economical solution for lower traffic doorways in diverse settings such as government, retail, industrial, and multi-family applications. Designed as a Grade 2 cylindrical lock, it features a Dane lever and a standard rose with a sleek satin brass finish, ensuring both aesthetic appeal and durability. This non-handed lock accommodates door thicknesses ranging from 1-3/8″ to 1-3/4″ and is equipped with a standard backset of 2-3/4″, with an option for 2-3/8″. The robust construction includes brass and cold-formed steel parts, treated for rust resistance, while stainless steel springs ensure longevity. The lock’s mechanism includes a six-chamber cylinder assembly that allows for easy re-keying and is compatible with SFIC products from other leading manufacturers. The Falcon W Series locks boast heavy wrought brass or bronze roses, installed over steel inserts for added strength. Moreover, the lock meets ANSI/BHMA A156.2, Series 4000, Grade 2 standards and is UL listed for 3-hour fire-rated door assemblies. With a limited warranty of 10 years, the Falcon W511BD D lock is a dependable choice for any commercial application, delivering both security and peace of mind.
Grade 2 Entry / Office Lock

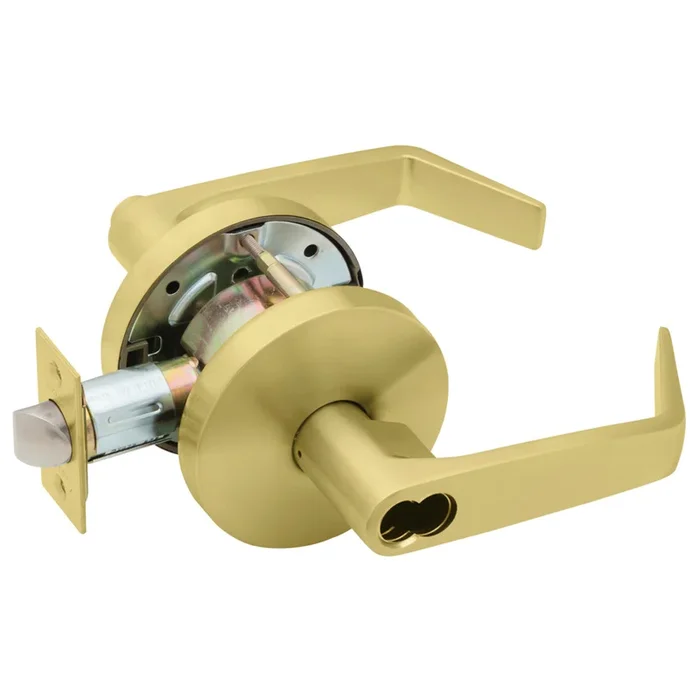

Grade 2 Entry/Office Cylindrical Lock, SFIC Prep Less Core, Dane Lever, Standard Rose, Satin Brass Finish, Non-handed
Falcon is dedicated to providing a solid product at a solid price no matter the application. When an affordable lock is needed for lower traffic doorways in government, retail, industrial or multi-family applications, the W Series lock fits perfectly. With two popular lever and knob styles as well as two popular rose diameters (big and small), Falcon can match most commercial door trim. The Falcon W Series locks feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers. Our conventional cylinders are available in all Falcon conventional key sections, as well as Schlage C keyway, which we now masterkey across the complete Falcon product line.
Feature conventional cylinders and small format interchangeable cores that are compatible with SFIC products from other manufacturers.
- Door Thickness:1-3/8” to 1-3/4” standard.
- Backset:2-3/4” standard; 2-3/8” also available.
- Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.
- Handing:Locks are non-handed.
- Cylinder:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.
- Competitor Cylinder:The W Series accepts standard 6-pin cylinders available from Falcon, as well as Schlage, Corbin-Russwin, Yale and Sargent.
- Keyways:“G” keyway standard on Falcon standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage “C” keyway also available on standard cylinders, includes master key. Master keying available on all Falcon and Schlage “C” keyways.
- Trim:Roses are heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.
- Latches:1/2” bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8” backset with 1” x 2-1/4” latch faces or 2-3/4” backset with 1-1/8” x 2-1/4” latch faces.
- Strikes:4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.
- Screws:Furnished with combination screws for use in wood or metal doors and frames.
- ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.
- UL:3-hour A label.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2-2011, Series 4000, Grade 2
Ansi Function: F109 – Entry/Office
Baa Qualified: Yes
Bolt Projection: 1/2″ Latch
Bore Hole Diameter: 2-1/8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: Taiwan
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/8″ – 2″
Dust Box: Plastic
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: W511-Entry/Office
Grade: Grade 2
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Leverknob Design: D – Dane Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8″ x 2-1/4″
Origin: Taiwan
Pack Height: 6.75″
Pack Length: 7.25″
Pack Qty: 1
Pack Volume: 183.52 in³
Pack Width: 3.75″
Pbs Options: 10293942
Projection: 2-1/2″
Restrictions: None
Roseescutcheon Design: Standard Rose
Roseescutcheon Dimensions: 3-1/2″ Rose Diameter
Screws: Combination
Series: W Series Grade 2 Cylindrical Lever Locks
Ship Weight: 2.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 30-197
Std Latch Type: Deadlatch
Std Strike Height: 1-1/4″
Std Strike Number: 30-148
Std Strike Type: ANSI Strike
Std Strike Width: 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: A Label
Unit of Measure: Each
