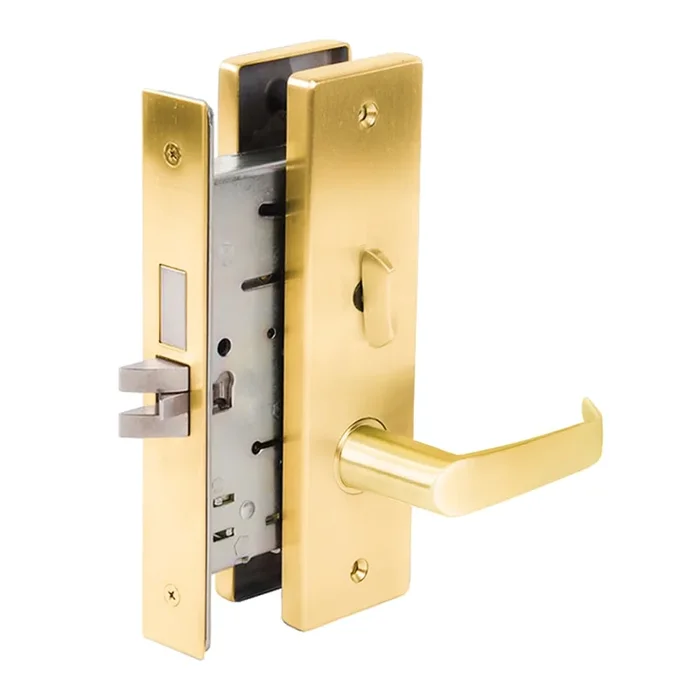

Falcon Entry/Office Mortise Lock – Secure Your Doors

Description

Falcon Lock MA541P DN 605 Entry/Office Mortise Lock Instructions

Falcon Lock MA541P DN 605 Entry/Office Mortise Lock combines high performance with affordability, making it an ideal choice for commercial environments like offices, hospitals, and educational institutions. As a Grade 1 mortise lock, it ensures reliable security, built to withstand constant use without compromising functionality. This lock features a Dane lever and Napa escutcheon in a bright brass finish, offering a blend of durability and aesthetic appeal. Designed for standard door thicknesses of 1-3/8″ to 2-1/2″, the Falcon MA541P is equipped with a 2-3/4″ backset and a robust cold-formed steel case, zinc dichromate plated for added resistance. Its solid brass cylinder and plug provide enhanced security, with options for 5, 6, or 7-pin configurations. The heavy-duty through-bolted inserts ensure proper alignment and stability, while the two-piece stainless steel latch bolt features a 3/4″ projection for reliable locking. With an ANSI/BHMA certification and a 3-hour A label from UL, this mortise lock meets stringent safety standards. Additional features like a 1″ throw deadbolt and a non-handed strike enhance its versatility. Backed by Allegion, the Falcon MA541P DN 605 represents a trusted solution for demanding commercial applications.

Entry/Office Mortise Lock

Grade 1 Mortise Lock, Entry/Office Function, Dane Lever, Napa Escutcheon, Bright Brass

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Ansi Function: F21 – Entry Office

Base Material: Brass

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Finish: 605/US3

Function: MA521-Entry/Office Lock

Grade: Grade 1

Installation: Commercial

Leverknob Design: D – Dane Lever

Pack Height: 5″

Pack Length: 10.25″

Pack Qty: 1

Pack Width: 9″

Pbs Options: 10293938

Pins: 5

Roseescutcheon Design: N – Napa Escutcheon

Series: MA Series Grade 1 Mortise Locks

Ship Weight: 7 lbs.

Std Keyway: G

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
