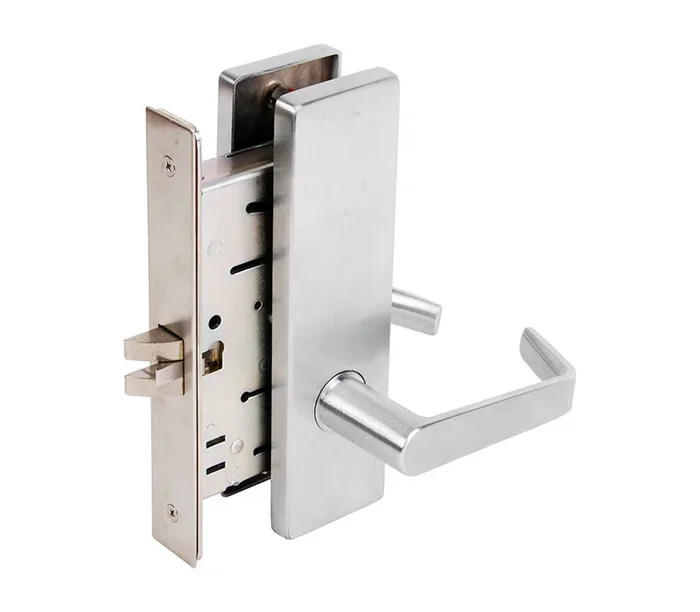

Falcon Lock MA521L DN 606 Mortise Lock for Entry/Office Use
Falcon MA521L DN 606 Entry/Office Mortise Lock is a Grade 1 lock designed to provide exceptional security for commercial environments such as offices, hospitals, and educational institutions. Built for durability, this mortise lock features a satin brass finish and is equipped with the stylish Dane lever and Napa escutcheon, making it both functional and aesthetically pleasing. This lock accommodates standard door thicknesses from 1-3/8″ to 2-1/2″ and features a 2-3/4″ backset, ensuring compatibility with a wide range of doors. Constructed from cold-formed steel with zinc dichromate plating, the lock is designed to withstand frequent use. The MA Series includes a solid brass cylinder for reliable performance, and its interchangeable core allows for easy re-keying, making it convenient for property management. With heavy-duty through-bolted inserts for proper alignment, the lock’s bind-resistant trim guarantees long-lasting functionality. The two-piece stainless steel latch bolt and robust deadbolt provide added security, while the armored front and adjustable faceplates ensure solid installation on various door bevels. Certified to meet ANSI/BHMA standards, the Falcon MA521L is a trusted choice for those seeking quality and reliability in door hardware.
Entry/Office Mortise Lock
Grade 1 Entry/Office Mortise Lock, Less Cylinder, Dane Lever, Napa Escutcheon, Satin Brass Finish
The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.
Provides security and is built to stand up to constant use without fail.
- Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
- Backset:2-3/4” only.
- Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
- Hubs:Hardened steel.
- Handing:Right hand is standard; left hand optional. Reversible in the field.
- Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
- Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
- Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
- Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
- Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
- Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
- Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
- Electrified Functions:Available in 12 or 24 VDC.
- ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
- UL:3 hour A label.
Attributes
Manufacturer surcharge: 4.5%
Ansi Function: F04 – Entry/Office
Base Material: Brass
Commercial Residential: Commercial
Cylinder Type: Less Cylinder
Finish: 606/US4
Function: MA521-Entry/Office Lock
Grade: Grade 1
Installation: Commercial
Leverknob Design: D – Dane Lever
Pack Height: 5″
Pack Length: 10.25″
Pack Qty: 1
Pack Width: 9″
Pbs Options: 10348829
Roseescutcheon Design: N – Napa Escutcheon
Series: MA Series Grade 1 Mortise Locks
Ship Weight: 7 lbs.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- MA Series Grade 1 Mortise Locks Cut Sheet
- MA-Series Installation Instructions
- MA-Series Sell Sheet
- MA-Series Service Manual
- Video: Falcon MA Mortise Lock Installation
- Von Duprin Finishes Chart
