Falcon Dormitory Mortise Lock – Secure and Reliable Locking Solutions

Description

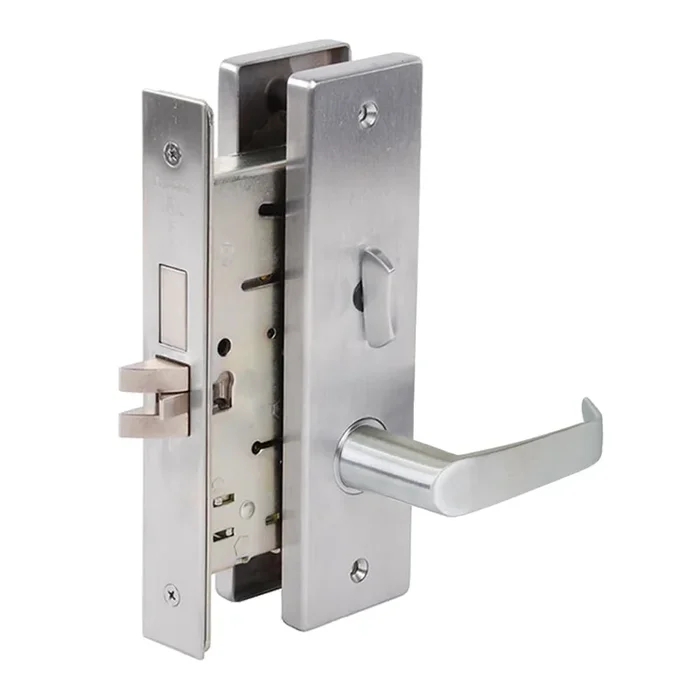

Falcon Lock MA571L DN 626 Dormitory Mortise Lock Guide

Falcon MA571L DN 626 Dormitory Mortise Lock offers a robust solution for commercial spaces, ensuring reliable security in high-traffic environments like offices, hospitals, and educational institutions. As a Grade 1 Dormitory/Exit Mortise Lock, it features a sleek satin chrome finish and is designed for durability and ease of use. The lock is field reversible, accommodating both right and left-hand installations, which simplifies the setup process. This model comes with a Dane Lever and Napa Escutcheon, providing both functionality and aesthetic appeal. The MA Series boasts an interchangeable core system, allowing for quick re-keying and compatibility with SFIC products from various manufacturers. Its cold-formed steel case with zinc dichromate plating ensures resilience against wear, while the heavy-duty through-bolted inserts guarantee proper alignment and strength. The lock features a two-piece stainless steel latch bolt with a 3/4″ projection, complemented by a 1″ throw deadbolt. It meets ANSI/BHMA 156.13 standards and is UL listed for up to 3 hours, ensuring compliance with safety regulations. With its reliable performance and easy installation, the Falcon MA571L is an excellent choice for enhancing security in any commercial application.

Dormitory Mortise Lock

Grade 1 Dormitory/Exit Mortise Lock, Less Conventional Cylinder, Dane Lever, Napa Escutcheon, Satin Chrome Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1

Ansi Function: F13 – Dormitory

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch & 1″ Bolt

Bolt Throw: 3/4″ Latch & 1″ Bolt

Cam Number: 5622

Commercial Residential: Commercial

Cylinder Type: Less Conventional Cylinder

Door Thickness: 1-3/4″ to 1-7/8″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: MA571-Dormitory/Exit

Function Family: Privacy

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Backset Dimension: 2-3/4″

Lever Knob: Lever

Leverknob Design: D – Dane Lever

Leverknob Design Family: Straight Return Lever

Lock Face Size: 8″ x 1-1/4″

Pack Qty: 1

Pbs Options: 10348829

Projection: 2-1/2″

Rose Escutcheon: Escutcheon

Roseescutcheon Design: N – Napa Escutcheon

Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″

Screws: Combination

Series: MA Series Grade 1 Mortise Locks

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Anti-Friction Latch & Deadbolt

Std Strike Height: 4-7/8″

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
