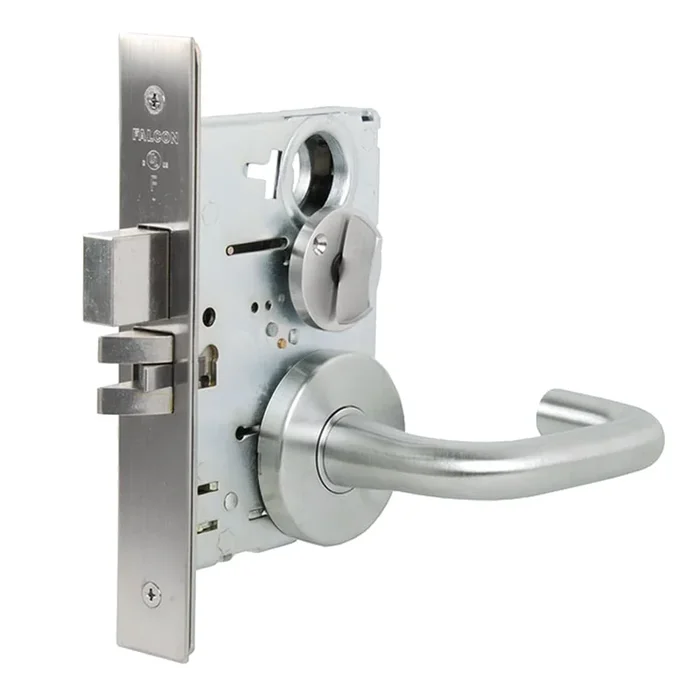

Falcon Dormitory Mortise Lock – High-Quality Security for Student Housing

Description

Falcon Lock MA571B SG 626 Dormitory Mortise Lock Guide

Falcon Lock MA571B SG 626 Dormitory Mortise Lock combines robust security features with reliable durability, making it a prime choice for commercial spaces such as offices, hospitals, and educational institutions. Rated Grade 1, this mortise lock is engineered to withstand constant use while ensuring safety and ease of access.The MA571B is designed with a field-reversible handing feature, allowing for flexible installation on both right and left-hand doors. With a backset of 2-3/4 inches and a standard door thickness accommodating 1-3/8 inches to 2-1/2 inches, it provides versatility for various applications. The lock’s heavy-duty, cold-formed steel case is zinc dichromate plated for enhanced resistance against wear. Equipped with a solid brass cylinder and a dual-action latch bolt, it features a 3/4-inch projection and a 1-inch deadbolt throw, offering superior protection against unauthorized access. The lock face is available in either brass or stainless steel, ensuring aesthetic compatibility with any door design. Additionally, it meets ANSI/BHMA 156.13 standards and boasts a 3-hour fire rating, providing peace of mind for safety compliance. Experience the reliability and performance of Falcon’s MA Series with the MA571B SG 626 Dormitory Mortise Lock-an ideal solution for those who prioritize security and functionality.

Dormitory Mortise Lock

Grade 1 Dormitory/Exit Mortise Lock, SFIC Prep Less Core, Sutro Lever, Gala Rose, Satin Chrome Finish, Field Reversible

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1

Ansi Function: F13 – Dormitory

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch & 1″ Bolt

Bolt Throw: 3/4″ Latch & 1″ Bolt

Cam Number: 5622

Commercial Residential: Commercial

Cylinder Type: SFIC Prep Less Core

Door Thickness: 1-3/4″ to 1-7/8″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: MA571-Dormitory/Exit

Function Family: Privacy

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Backset Dimension: 2-3/4″

Lever Knob: Lever

Leverknob Design: S – Sutro Lever

Leverknob Design Family: Tubular Return Lever

Lock Face Size: 8″ x 1-1/4″

Pack Qty: 1

Pbs Options: 10293942

Projection: 2-7/8″

Rose Escutcheon: Rose

Roseescutcheon Design: G – Gala Rose

Roseescutcheon Dimensions: 2-9/16″ Diameter

Screws: Combination

Series: MA Series Grade 1 Mortise Locks

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Anti-Friction Latch & Deadbolt

Std Strike Height: 4-7/8″

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
