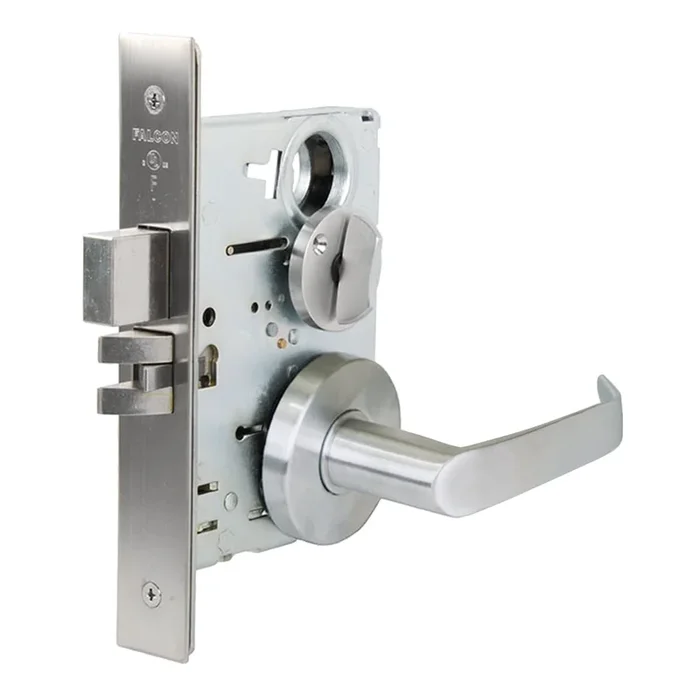

Falcon Dormitory Mortise Lock – Durable and Secure Door Hardware

Description

Falcon Lock MA571P DG 626 Dormitory Mortise Lock Guide

Falcon MA571P DG 626 Dormitory Mortise Lock offers exceptional security and durability, making it an ideal choice for educational institutions, hospitals, and various commercial projects. Designed with a Grade 1 rating, this exit mortise lock features a stylish Dane lever and Gala rose, finished in sleek satin chrome, ensuring both functionality and aesthetic appeal. Built to withstand constant use, the MA Series is renowned for its reliability. The lock accommodates door thicknesses between 1-3/8″ and 2-1/2″, with a backset of 2-3/4″. Its cold-formed steel case is zinc dichromate plated, offering added protection and durability. Installation is straightforward, with options for both right and left-hand usage, and the lock is reversible in the field. The solid brass cylinder and plug come with 5, 6, or 7-pin options, allowing for customizable security. The heavy-duty latch bolt and deadbolt feature stainless steel components for enhanced strength, while the bind-resistant trim ensures proper alignment and longevity.With ANSI/BHMA certification and a UL rating of 3 hour A label, the Falcon MA571P DG lock is engineered to meet the highest standards of safety and performance, making it a trusted choice for demanding environments.

Dormitory Mortise Lock

Grade 1 Dormitory, Exit Mortise Lock, Dane Lever, Gala Rose, Satin Chrome Finish

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Ansi Function: F13 – Dormitory

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Finish: 626/US26D

Function: MA571-Dormitory or Exit Lock

Grade: Grade 1

Installation: Commercial

Leverknob Design: D – Dane Lever

Pack Qty: 1

Pbs Options: 10293938

Pins: 5

Roseescutcheon Design: G – Gala Rose

Series: MA Series Grade 1 Mortise Locks

Std Keyway: G

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
