Falcon CVR Exit Device, Nightlatch 3′ – Concealed Vertical Rod Exit Solution

Description

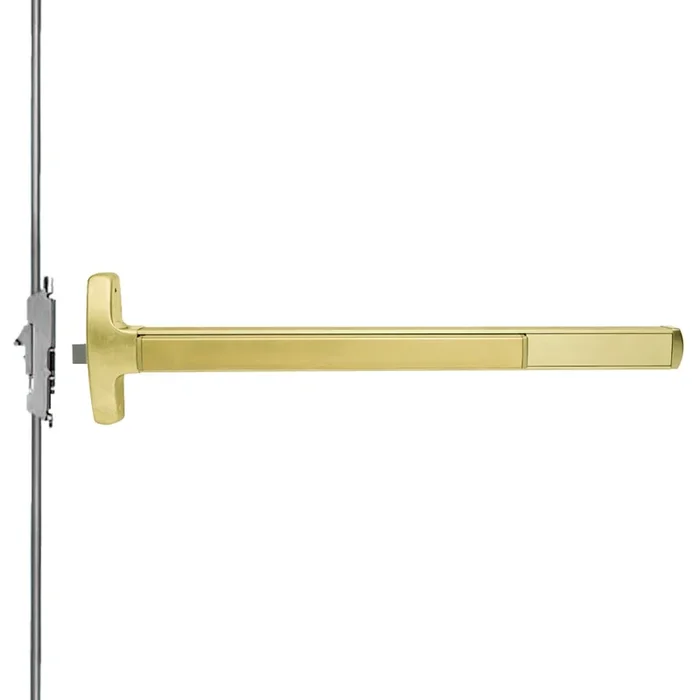

Falcon Lock MELRX24-C-C 3 US4 RHR CVR Nightlatch Exit Device, 3′

Falcon Lock MELRX24-C-C 3 US4 RHR CVR Exit Device offers a Grade 1 concealed vertical rod exit bar designed for durability and reliability. With a narrow stile pushpad and a length of 36 inches, this device is suitable for doors up to 84 inches high, making it an excellent choice for various commercial applications. The night latch function enhances security while ensuring ease of use. This exit device is engineered with motorized electric latch retraction, providing seamless access control, particularly in high-traffic areas. The satin brass finish (606/US4) not only adds a touch of elegance but also ensures a scratch-resistant surface, thanks to its stainless steel pushpad cover. Designed for right-hand reverse handing, it accommodates door materials such as wood or metal with a thickness of 1-3/4 inches. The Falcon 24 Series is known for its smart solutions, featuring options for electrification and panic use, allowing for flexible installation. With no dogging and a request-to-exit switch type, this device maximizes safety while maintaining a streamlined appearance. Trust the Falcon Lock MELRX24-C-C for reliable performance and exceptional value in your building’s security systems.

CVR Exit Device, Nightlatch 3′

Grade 1 Concealed Vertical Rod Exit Bar, Narrow Stile Pushpad, 36″ Device, 84″ Door Height, Night Latch Function, No Pull Cylinder Only Escutcheon Trim, Less Dogging, Motorized Electric Latch Retraction, Request to Exit, Satin Brass Finish, Right Hand Reverse

The Falcon 24 Series Narrow Stile exit devices fill the bill with some of the toughest, most reliable performance in the business. A host of features makes this a smart solution, like a choice of an A or B label fire rating, electrified and panic options, and a full complement of trims. Sleek, streamlined device applications means a smart solution for your building design, as well as its use. And since they’re getting the utmost value, reliability and durability.

Narrow Stile

Stainless steel pushpad cover for a scratch-resistant surface.

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3-2001

Commercial Residential: Commercial

Device Length: 36″

Device Type: Concealed Vertical Rod

Dogging Options: Less Dogging

Door Height: 84″

Door Material: Wood or Metal

Door Thickness: 1-3/4″

Electric Options: Motorized Electric Latch Retraction

Finish: 606/US4

Finish Family: Matte Brass

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right Hand Reverse

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Mechanical Function: Night Latch

Minimum Stile Size: 2-1/4″

Pack Qty: 1

Pbs Options: 40090292, 216157553

Physical Appearance: Narrow Stile Pushpad

Reversible: No

Series: 24 Series Exit Devices

Strike Bottom: 2130

Subtype: Concealed Vertical Rod Exit Devices

Switch Type: Request to Exit

Top Strike: 4188

Trim Design: No Pull

Trim Part No: 718C-C US4 RHR

Trim Type: Cylinder Only Escutcheon

Type: Exit Devices

Unit of Measure: Each

Resources

• 19, 24, 25 and XX Series Exit Devices Service Manual
• 24 Series / 25 Series Sell Sheet
• 24 Series Exit Devices Cut Sheet
• 24-C Installation Instructions
• 24-R Installation Instructions
• 24-V Installation Instructions
• 24-WDC Installation Instructions
• Falcon Motorized Electric Latch Retraction Kit Data Sheet
• Von Duprin Finishes Chart
