Falcon Connecting/Exit Mortise Lock

Description

Falcon Lock MA161 QG 626 LHR Exit Mortise Lock Connection Instructions

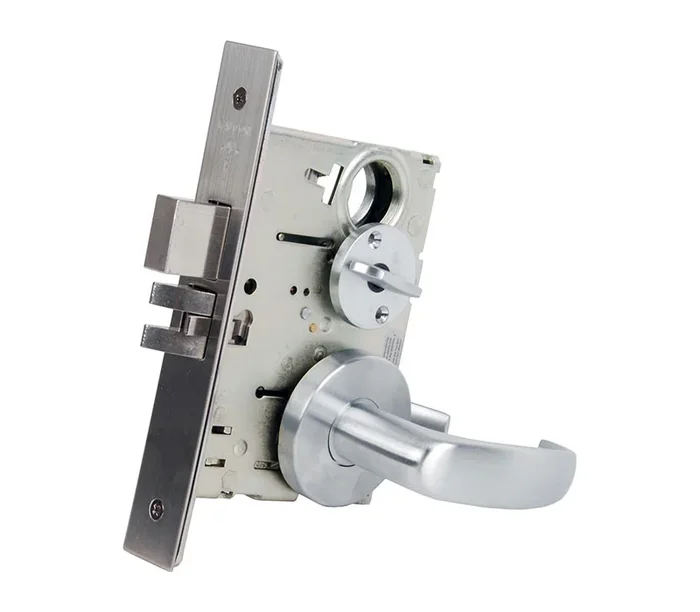

Falcon Lock MA161 QG 626 LHR Connecting/Exit Mortise Lock offers a robust solution for high-traffic environments such as offices, hospitals, and educational institutions. This Grade 1 mortise lock features a non-keyed Quantum lever design with a Gala Rose escutcheon in a sleek satin chrome finish. Built to withstand constant use, the MA Series is known for its reliability and security, ensuring peace of mind for commercial settings. Designed for standard door thickness of 1-3/8″ to 2-1/2″, this lock includes a 2-3/4″ backset and is constructed with cold-formed steel that is zinc dichromate plated for durability. The solid brass cylinder and plug are available in multiple pin configurations, providing flexibility for re-keying and compatibility with SFIC products from other manufacturers. The innovative latch bolt design features a two-piece stainless steel, mechanical anti-friction bolt with a 3/4″ projection, enhancing its reliability. Additionally, the Falcon MA161 meets ANSI/BHMA 156.13 standards and is UL listed for 3-hour fire ratings, ensuring it meets stringent safety requirements. With its heavy-duty through-bolted trim and bind-resistant design, this lock is not only functional but also built to last, making it an ideal choice for any commercial application.

Connecting/Exit Mortise Lock

Grade 1 Connecting Room/Exit Mortise Lock, Non-Keyed, Quantum Lever, Gala Rose, Satin Chrome Finish, Left-Hand Reverse

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1

Ansi Function: F31 – Exit

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch

Bolt Throw: 3/4″ Latch

Commercial Residential: Commercial

Cylinder Type: Non-Keyed

Door Thickness: 1-3/4″ to 1-7/8″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: MA161-Connecting Room/Exit

Function Family: Exit

Grade: Grade 1

Handing: Left-Hand Reverse

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Backset Dimension: 2-3/4″

Lever Knob: Lever

Leverknob Design: Q – Quantum Lever

Leverknob Design Family: Curved Return Lever

Lock Face Size: 8″ x 1-1/4″

Pack Qty: 1

Projection: 2-11/16″

Rose Escutcheon: Rose

Roseescutcheon Design: G – Gala Rose

Roseescutcheon Dimensions: 2-9/16″ Diameter

Screws: Combination

Series: MA Series Grade 1 Mortise Locks

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Anti-Friction & Auxiliary Latch

Std Strike Height: 4-7/8″

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each

Resources

• MA Series Grade 1 Mortise Locks Cut Sheet
• MA-Series Installation Instructions
• MA-Series Sell Sheet
• MA-Series Service Manual
• Video: Falcon MA Mortise Lock Installation
• Von Duprin Finishes Chart
