Falcon Apartment Exit Mortise Lock – Durable Security Solution

Description

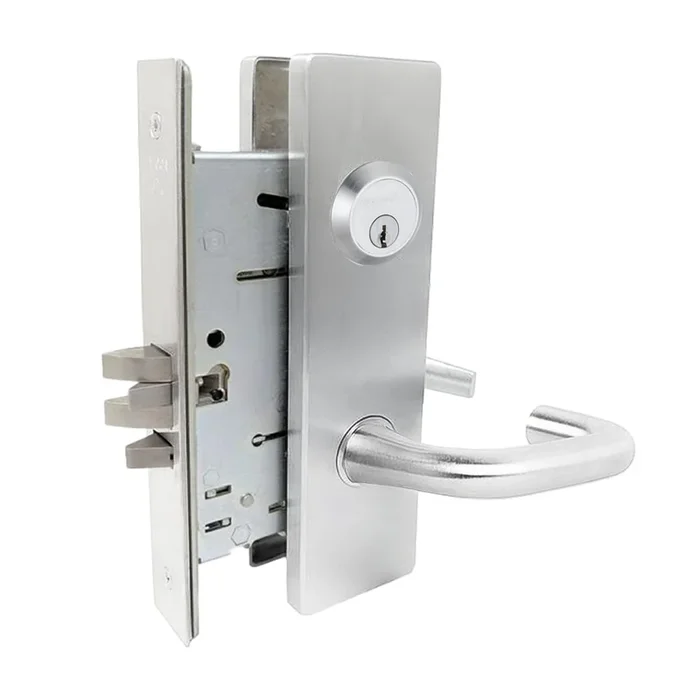

Falcon Lock MA381P SN 626 LH Apartment Exit Mortise Lock Guide

Falcon MA381P SN 626 LH Apartment Exit Mortise Lock offers Grade 1 security designed for high-traffic environments such as offices, hospitals, and educational facilities. This robust lock features a 5-pin conventional cylinder and is equipped with a Sutro lever and Napa escutcheon, all finished in a sleek satin chrome. Specifically crafted for left-handed applications, this lock stands out with its durability and reliability, ensuring it can withstand constant use without fail. Installation is straightforward, accommodating standard door thicknesses from 1-3/8″ to 2-1/2″ and a backset of 2-3/4″. The case is constructed from cold-formed steel, zinc dichromate plated for added resilience. With a two-piece stainless steel latch bolt and a 1″ throw deadbolt, security is paramount, featuring hardened steel hubs and a heavy-duty through-bolted trim that guarantees proper alignment. The Falcon MA381P lock is also designed for easy retrofitting, as it supports interchangeable cores compatible with SFIC products from other manufacturers. With a UL listing and compliance to ANSI/BHMA 156.13 standards, this lock not only provides peace of mind but also meets the rigorous demands of commercial applications. Choose Falcon for unbeatable quality and performance in door hardware solutions.

Apartment Exit Mortise Lock

Grade 1 Apartment Exit Mortise Lock, 5-Pin Conventional Cylinder, Sutro Lever, Napa Escutcheon, Satin Chrome Finish, Left-Handed

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon’s toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they’re backed by one of the best names in the business – Allegion.

Provides security and is built to stand up to constant use without fail.

• Door thickness:Standard accommodates thickness of 1-3/8” to 2-1/2”.
• Backset:2-3/4” only.
• Case:Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
• Hubs:Hardened steel.
• Handing:Right hand is standard; left hand optional. Reversible in the field.
• Cylinders:Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
• Keyways:“G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
• Bind Resistant Trim:Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
• Latch Bolt:Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
• Dead Bolt:1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
• Faceplates:(Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
• Strike:Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
• Electrified Functions:Available in 12 or 24 VDC.
• ANSI/BHMA:Meets ANSI/BHMA 156.13, Series 1000.
• UL:3 hour A label.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA 156.13 Series 1000 Grade 1

Ansi Function: F09 – Entry/Restroom

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch

Bolt Throw: 3/4″ Latch

Cam Number: 5621 Exterior, 5620 Interior

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″ to 1-7/8″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

Function: MA381-Apartment Exit

Function Family: Privacy

Grade: Grade 1

Handing: Left-Handed

Installation: Commercial

Keying: Keyed Different

Keys: Cut

Latch Backset Dim: 2-3/4″

Latch Backset Dimension: 2-3/4″

Lever Knob: Lever

Leverknob Design: S – Sutro Lever

Leverknob Design Family: Tubular Return Lever

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Pack Qty: 1

Pbs Options: 10293938

Pins: 5

Projection: 2-7/8″

Rose Escutcheon: Escutcheon

Roseescutcheon Design: N – Napa Escutcheon

Roseescutcheon Dimensions: 8-1/8″ x 2-1/4″

Screws: Combination

Series: MA Series Grade 1 Mortise Locks

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Anti-Friction & Auxiliary Latch

Std Strike Height: 4-7/8″

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each
