Description

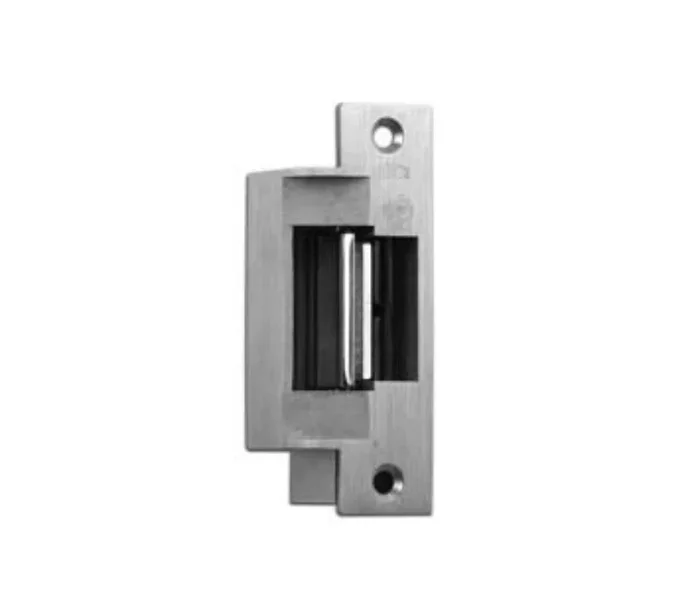

RCI F1119-01 32D F1 Series Fire-Rated Strike
RCI F1119-01 32D F1 Series Fire-Labeled Strike offers a robust solution for fire-rated openings, combining safety with functionality in a sleek satin stainless steel design. This fire-rated electric strike features a 9″ faceplate with a flat shape and square corners, making it ideal for both metal and wood frame applications. Accommodating 3/4″ projection latches, it can also adjust horizontally by up to 1/4″, relieving side-load pressure to ensure proper latch alignment.Designed for commercial use, the F1119-01 operates at 11-16 VAC and functions in a fail-secure mode, providing reliable access control in public buildings and industrial environments. It meets stringent safety standards, being UL 1034 burglary-resistant listed and certified to ANSI/BHMA standard A156.31, Grade 1 with an endurance rating of 500,000 cycles. Additionally, it boasts a fire rating of 1-1/2 hours, ensuring compliance in critical areas.With a limited warranty of 5 years and an amp draw of .50-.70 amps, the RCI F1119-01 is an excellent choice for those seeking durability and peace of mind in their security hardware solutions.
F1 Series Fire-Labeled Strike
Fire Rated Electric Strike, 9″ Faceplate, For 3/4″ Projection Latches, 11-16 VAC, Fail Secure, Satin Stainless Steel
F1 Centerline Strikes Features stainless steel faceplate with square corners ideal for hollow metal frames . Accommodates 1/2″ (12 .7mm), 5/8″ (16mm) or 3/4″ (19mm) latch projection Up to 1/4″ (6 .4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment. UL 1034 burglary-resistant Listed CAN/ULC S104 & UL 10C, 1-1/2 hour fire-rating Listed. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles
Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments
Attributes
Manufacturer surcharge: 9.0%
Amp Draw: .50-.70 Amps
Base Material: Stainless Steel
Commercial Residential: Commercial
Faceplate Shape: Flat Face, Square Corners
Faceplate Size: 9″ x 1-3/8″
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
For Use With: Cylindrical Locks, Mortise Exit and Latch Locks
Frame Application: Metal or Wood
Function: Fail Secure
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 11-16 VAC
Pack Qty: 1
Series: RCI Electric Strikes
Subtype: Electric Strikes
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
