Description

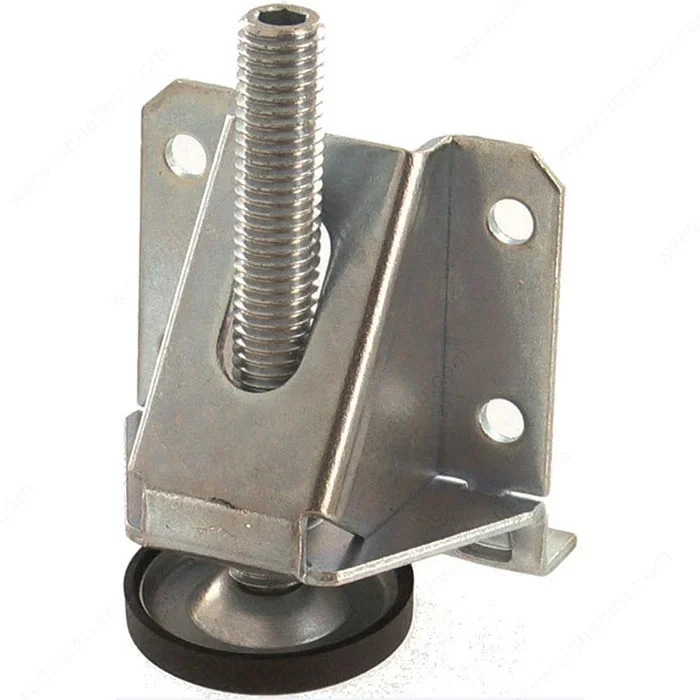

Richelieu NCM1075 Heavy-Duty Floor Leveler
Richelieu NCM1075 Extra Heavy-Duty Floor Leveler offers a robust solution for achieving perfect stability in your furniture. Designed for easy installation, these leveling feet come with a ledger that attaches securely to the underside of your furniture using four screws. Once installed, accessing the adjustment shaft is straightforward; simply lift the cabinet with a pry bar and adjust using your fingers. In tight spaces, the included 7/32 in (5 mm) hex wrench allows for precise micro-adjustments, ensuring your furniture remains perfectly level. These leveling feet are versatile, suitable for both interior and exterior applications, making them ideal for a variety of furniture types. Notably, the recessed top of the bolt facilitates easy adjustments even under full load. With a maximum adjustment range of 2 1/4 inches, a load rating of 551 lbs, and a base diameter of 1 1/4 inches, the NCM1075 is engineered for durability and strength. Constructed from high-quality polyethylene and steel, it boasts an overall height of 2 7/8 inches and a width of 1 5/16 inches. Available in a sleek zinc or black finish, this floor leveler combines functionality with an attractive appearance, making it a perfect addition to any project.
Extra Heavy-Duty Floor Leveler
The leveling feet are super easy to install. Just install the legs with the ledger under the bottom of the furniture using the four screws. When you are able to reach the shaft below, use a pry bar to lift the cabinet and turn the shaft with your fingers. When access is limited, use the provided 7/32 in (5 mm) hex wrench for micro adjustment until they are perfectly level to your desired height.
Application
– Recess in the top of bolt makes adjustment easy under full load with an Allen wrench.
– May be used on interior or exterior of furniture.
Attributes
Adjustment Range: Max. 2 1/4 in
Base Diameter: 1 5/16 in
Finish: Black
Height – Overall Dimensions: 2 7/8 in
Length – Overall Dimensions: 2 1/8 in
Load Rating: 1 000 lb
Material: Polyethylene, Steel
Product #: NCM1075
Product number: NCM1075
Product №: NCM1075
Stem Length: 2 11/16 in
Threaded Stem: 3/8″ – 16
Unit 1: case – 100
Width – Overall Dimensions: 1 5/16 in
Resources
- Line art
