Richelieu WEBKIT1242835 EVO Sliding Door System Guide
Richelieu WEBKIT1242835 EVO Sliding Door System offers a versatile solution for modern spaces, accommodating both wood and glass doors with a weight capacity of up to 80 kg (176 lb). This system is designed to cater to varying door thicknesses, supporting wood doors from 19 mm (3/4 in) to 36 mm (1 3/8 in) and glass doors from 8 mm (5/16 in) to 10 mm (3/8 in).Available in four elegant finishes-black, chrome, champagne, and titanium-the EVO system enhances the aesthetic of any room. It features adjustable concealed soft-close mechanisms for a seamless operation and customizable bracket support mounts to fit your installation needs. Choose from three track lengths (2 m, 3 m, and 4 m) to perfectly match your door size. The system includes two sizes of matching SLIM pull handles, making it easy to integrate with various surfaces. Ideal for both residential and commercial applications, it is perfect for walk-in closets, pantries, and standard access doors. With a simple, flexible installation process and smooth operation, the Richelieu EVO Sliding Door System is a stylish and functional choice for contemporary design. Note that the minimum door width for the soft-close mechanism is 700 mm (27 1/2 in).

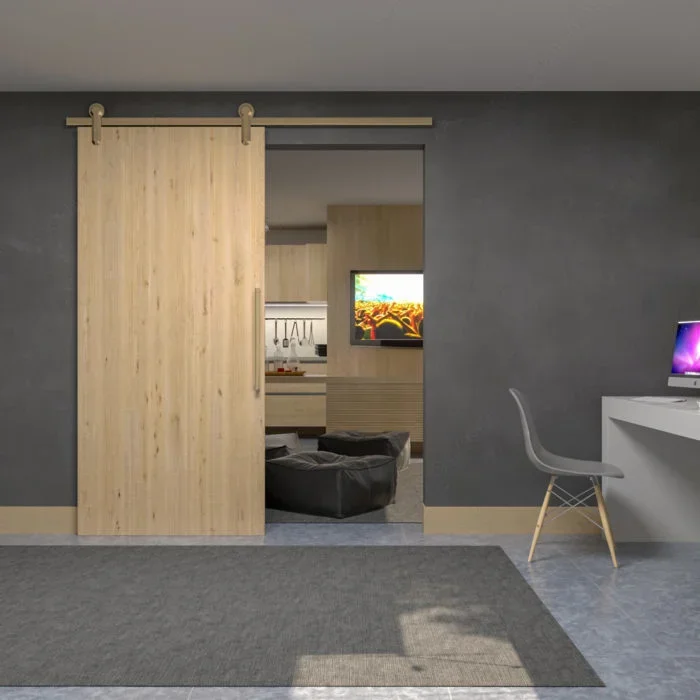

EVO Sliding Door System
The EVO barn door style sliding system for wood or glass doors for three different weight capacities: 40 kg (88 lb), 60 kg (132 lb), and 80 kg (176 lb).
Features:
– For wood doors 19 mm (3/4 in) to 36 mm (1 3/8 in) thick
– For glass doors 8 mm (5/16 in) to 10 mm (3/8 in) thick
– Available in four finishes: black, chrome, champagne, and titanium
– Three choices of track lengths: 2 m (78 3/4 in), 3 m (118 in), and 4 m (157 in)
– Concealed soft-close mechanisms can be adjusted to different positions
– Bracket support mounts can be adjusted to different positions behind the track
– Choose from two sizes of matching SLIM pull handles with a self-adhesive back that can be applied to smooth surfaces such as wood, laminate, glass, steel, or aluminum
– Smooth operating
– Simple, flexible, and low-cost installation
IMPORTANT: The minimum door width with a soft-close mechanism is 700 mm (27 1/2 in).
Lighting may alter the appearance of some finishes and differ from the published renderings.
Ideal solution for residential and commercial applications for thin and thick doors, feature designer doors, walk-in closets, pantries, and standard access doors to a room.
Attributes
Ship via: No UPS – Common Carrier Only
Adjustable: Yes
Application: Standard Access Door, Barn Door
Detailed Door Movement: Single sliding, Barn door
Displayed in These Showrooms: Toronto
Door Height: Max. 2 600 mm
Door Installation: Top Hung
Door Material: Wood (19 mm – 36 mm), Glass (8 mm – 10 mm)
Door Movement: Straight Sliding
Door Projection: 80 mm
Door Thickness: 8 to 36 mm
Door Width: 700 to 1 000 mm
Finish: Champagne
Function: Sliding Door
Groove Depth: 12.7 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 12 mm
Height Clearance: 191 mm
Length – Overall Dimensions: 13 ft 1 in*
Load Capacity: 33.1 to 88.2 lb*
Manufacturing Material: Anodized Aluminum
Material: Anodized Aluminum
Number of Doors: 2
Overall Length: 4 000 mm
Product #: WEBKIT1242835
Product number: WEBKIT1242835
Product №: WEBKIT1242835
Roller Position: Upper
Roller Type: Premium Ball Bearing
Running Track Fixing: Bracket
Screw/ Nail Included: Yes
Set Screws Included: Yes
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: One-Way Operation
Soft- Closing: Yes
Style: Barn Door
Track Mounting: Wall Mount
Weight Capacity per Door: 15 to 40 kg
