ET Lever Trim, Storeroom – Sargent Electrical and Mechanical Door Hardware

Description

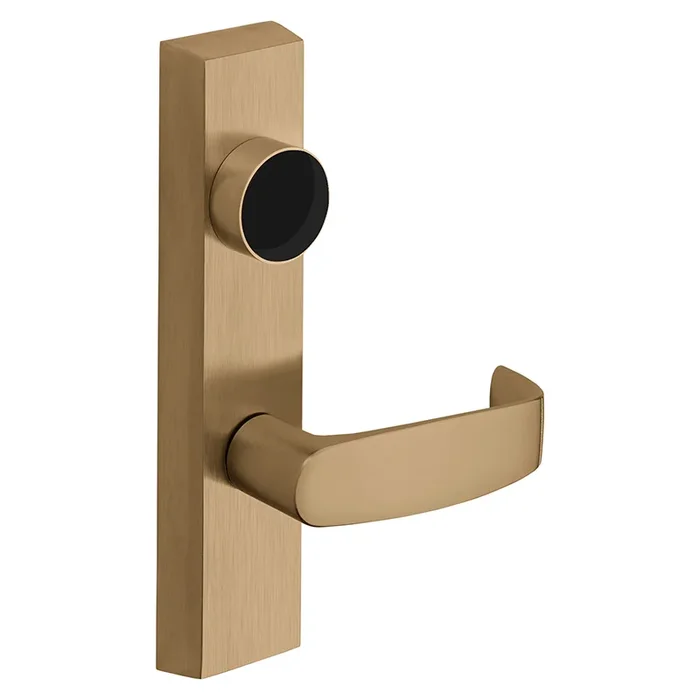

Sargent LC-706 ETL LHRB 10 ET Storeroom Lever Trim

Sargent LC-706 ETL LHRB 10 ET Lever Trim is a Grade 1 exit device trim designed for storeroom functionality, ensuring secure access control in commercial settings. This robust trim features a key that unlocks the trim, allowing for convenient latch retraction, while automatically relocking when the key is removed. It is compatible with Sargent’s Surface Vertical Rod and Mortise devices from the 8700 and 8900 series, providing versatility for various door setups. Constructed for doors with a thickness of 1-3/4 inches, the Sargent LC-706 is finished in satin bronze clear coat (612/US10), combining durability with a sleek appearance. This left-hand reverse trim is designed to facilitate ADA compliance and accessibility, making it an excellent choice for public and commercial buildings. Weighing only 3.7 lbs., it is easy to install and ship via UPS. The trim is sold without a cylinder, allowing for customization based on specific security needs. With a reversible design and an elegant L-lever, the Sargent LC-706 ETL is both functional and stylish, ensuring that your entryways are secure while maintaining aesthetic appeal. Upgrade your door hardware with this reliable and effective exit device trim.

ET Lever Trim, Storeroom

Grade 1 Exit Device Trim, Storeroom Function, Key Unlocks Trim, Trim Retracts Latch/Trim Relocks when Key is Removed, For Surface Vertical Rod and Mortise (8700, 8900 Series) Devices, Less Cylinder, L Lever, LHR, Satin Bronze Clear Coated

Trims fitting Sargent Exit Devices.

Attributes

Accessible: Yes

Ada Compliance: Yes

Application: For Surface Vertical Rod and Mortise (8700, 8900 Series) Devices

Cylinder Type: Less Cylinder

Device Type: Trim

Door Thickness: 1-3/4 In.

Finish: 612/US10

Fire Rated: No

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: No

Mechanical Function: Storeroom

Pack Height: 5.5″

Pack Length: 12.5″

Pack Qty: 1

Pack Width: 4.25″

Reversible: Yes

Series: ET Lever Control Trim

Ship Weight: 3.7 lbs.

Subtype: Exit Device Trim

Trim Design: L – Lever

Trim Type: Storeroom Lever

Type: Exit Devices

Unit of Measure: Each
