Description

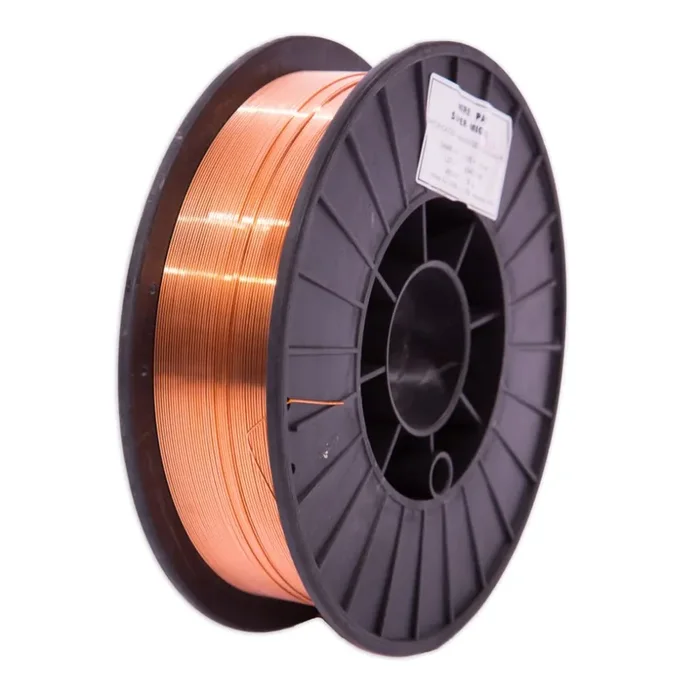

ER 70S-6 Copper Coated Mig Wire
Standard multipurpose MIG wire for use with mild steel and other common carbon steels. By far the most common type of MIG wire used for general purpose steel fabrication. Super MIG 70 is a premium welding wire containing higher levels of manganese and silicon then other standard grades of MIG wire. These features enable the wire to have excellent wetting ability with high weld deposits and excellent tolerance to rust and scale.
Approvals:
- AWS 5.18, ASME SFA 5.18
- CWB-CSA W48-06
- ISO-9002
- ABS Quality Evaluations
- Lloyds Register
- TUV & DB
| Typical Chemical Analysis | |||||
| C | Mn | Si | P | S | Cu |
| 0.07-0.15 | 1.40-1.85 | 0.80-1.15 | 0.025 Max | 0.035 Max | 0.50 Max |
|
Chemical and Mechanical Properties in the Metal Deposited, in accordance with AWS |
||||||
|
AWS Classification |
Gas |
Yield Strength | Tensile Strength |
Elongation % Min. 2″ |
||
| PSI | MPA | PSI | MPA | |||
| ER70S-6 | CO2 | 68,000 | (470) | 81,000 | (561) | 29% |
| 75-25 | 72,000 | (500) | 86,000 | (590) | 27% |
