Eplex 5200 Cylindrical Lock by Kaba Access – Secure Door Hardware

Description

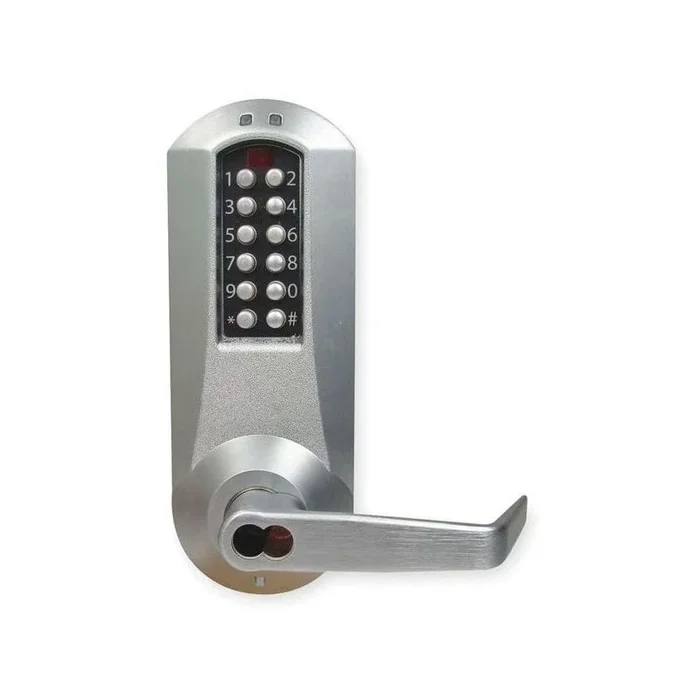

Dormakaba E5231MWL-626-41 Eplex 5200 Cylindrical Lock

Kaba Access E5231MWL-626-41 E-Plex 5200 Cylindrical Lock is a robust solution for securing commercial spaces while offering convenient access. This heavy-duty Grade 1 lock features a cylindrical design with solid cast housings and zinc levers, ensuring durability for both indoor and outdoor use. Designed with a non-handed configuration, it allows for easy field adjustments, accommodating left-hand installations effortlessly.The E-Plex 5200 supports up to 3,000 access codes and logs 30,000 audit events, making it an ideal choice for facilities requiring high security and detailed access tracking. It is compatible with Medeco, Yale, ASSA, and Abloy LFIC cores, providing flexibility in key systems. With a 2-3/4″ backset and a 1/2″ throw latch, this lock meets various installation requirements, while the optional 3/4″ latch throw enhances functionality. The E-Plex 5200 series enables exterior access via a keypad, allowing for secure entry without compromising free egress. Its matte silver finish (626/US26D) not only adds an elegant touch but also enhances its resilience in various environments. Perfect for commercial applications, the Kaba Access E-Plex 5200 is the reliable choice for modern security needs.

Eplex 5200 Cylindrical Lock

E-Plex 5200 Cylindrical Lock, 3,000 Access Codes, 30,000 Audit Events, Medeco/Yale/ASSA/Abloy LFIC Prep, Less Core, 2-3/4″ Backset, 1/2″ Throw, Satin Chrome

E-Plex 5200 Series provides exterior access by combination, while allowing free egress.

• Construction:Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing:Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  • Cylindrical: 2¾” (70 mm) backset, 2⅜” (60 mm) backset
    • Mortise: 2¾” (70 mm) backset
    • Exit Trim Model:Varies by Exit Device
• Latches:
  • Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
  • Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)
• Exit Device:Not supplied (see list above for compatibility)
• Exit Device Latch:Supplied with Exit Device
• Exit Device Hub Rotation:Up to 60º
• Minimum Stile Required:5″ (127 mm)

Attributes

Manufacturer surcharge: 7.0%

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: Medeco, Yale, ASSA LFIC Less Core

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Lock Platform: Cylindrical Lock with Keypad Trim

Pack Qty: 1

Series: E-Plex 5200 Series

Series Name: E-Plex

Subtype: Cylindrical Locks with Trim

Type: Integrated and Pushbutton

Unit of Measure: Each

Resources

• Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series 1.25 Mortise Installation Inst
• Kaba E-Plex Electronic Pushbutton Lock – 5000/5200/5600/5700 Series Exit Installation Instructions
• Lock Command Options with s – E-Plex 3200/5200
• Technical specifications for E-Plex 5200 Electronic Pushbutton Locks
