Eplex 2000 Exit Trim by Kaba Access – Secure and Reliable Door Hardware

Description

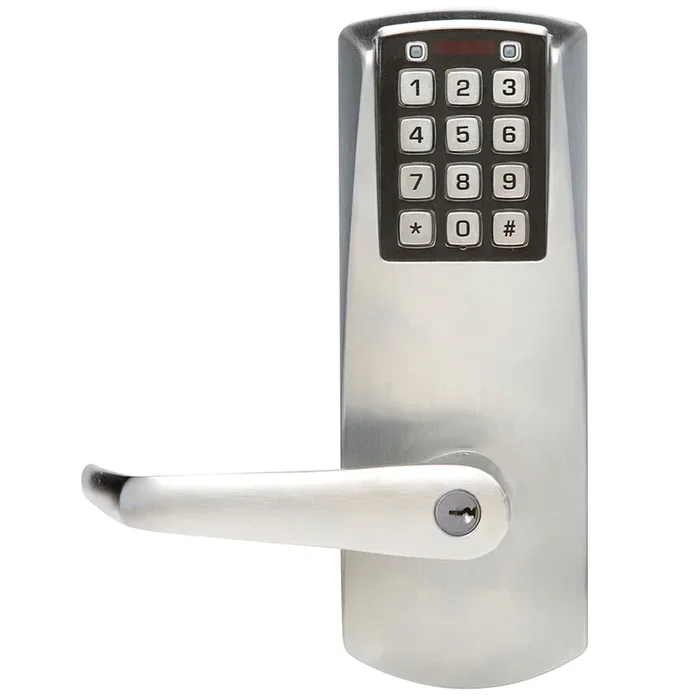

Dormakaba E201YXSLL-626-41 Eplex 2000 Exit Trim

Kaba Access E-Plex 2000 Exit Trim offers a robust solution for secure access control, accommodating up to 100 access codes and recording 1,000 audit events. This exit trim is compatible with Yale 7100 and Corbin ED5200 rim devices, featuring a Schlage C keyway in a sophisticated satin chrome finish. Designed to eliminate the hassles of traditional key management, the E-Plex 2000 ensures ease of use while enhancing security. Constructed as a heavy-duty commercial Grade 1 lockset, it boasts solid cast exterior housing and levers, ensuring durability for both indoor and outdoor applications. The trim is non-handed and pre-assembled for effortless left-hand installation, with the flexibility to change handing in the field. The cylindrical models include options for a ½” or ¾” throw latch, while mortise models feature a ¾” latch and optional 1″ deadbolt. With a minimum stile requirement of 5″ and packaged with both ANSI A115.3 “T” strike and A115.2 ASA strike, the E-Plex 2000 is tailored for commercial use. Its compact design, weighing 11 lbs., makes it a practical addition to any security system, ensuring reliable performance and peace of mind.

Eplex 2000 Exit Trim

E-Plex 2000 Exit Trim, 100 Access Codes, 1,000 Audit Events, Yale 7100, Corbin ED5200 Rim Devices, KIL, Schlage C Keyway, Satin Chrome

Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes

• Construction:Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing:Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  • Cylindrical:2¾” (70 mm) backset, 2⅜” (60 mm) backset
  • Mortise:2¾” (70 mm) backset
  • Exit Trim Model: Varies by Exit Device
• Latches:
  • Cylindrical Models: ½” (13 mm) throw latch, ¾” (19 mm) throw latch (optional)
  • Mortise Models: ¾” (19 mm) latch, 1″ (25 mm) deadbolt (optional)
• Strikes:Cylindrical locks packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
• Minimum Stile Required:5″ (127 mm)
• Key-in-Lever Cylinder:Kaba 1539 6-pin cylinder—Schlage “C” Keyway
• Interchangeable Core:Small format—Best and equivalent (6 or 7-pin length); cylinder not included

Attributes

Manufacturer surcharge: 7.0%

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Finish: 626/US26D

Finish Family: Matte Silver

Installation: Commercial

Lock Platform: Exit Device Trim, CVR & Rim with Keypad

Pack Height: 5.75″

Pack Length: 12″

Pack Qty: 1

Pack Width: 10.25″

Pins: 6

Series: E-Plex 2000 Series

Series Name: E-Plex

Ship Weight: 11 lbs.

Std Keyway: C

Subtype: Exit Device Trim, Concealed Vertical Rod & Rim

Type: Integrated and Pushbutton

Unit of Measure: Each

Resources

• E-Plex 2000 / E-Plex 2000 with PowerStar How to Hard Reset a pre-2012 Lock (Old Method)
• E-Plex 2000: Perform a Hard Reset When You Know the Master Code (2012-Present Locks)
• E-Plex 2000: Perform a Hard Reset when the Master Code is Unknown. (2012-Present Locks)
• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – 2000 Series Installation Instructions
• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – 2000 Series Operations Manual
• Kaba E-Plex / PowerPlex Electronic Pushbutton Lock – E2000/P2000/E5000 Series Lock Set Up Guide
• Lock Command Options with s – E-Plex/PowerPlex 2000 Series
• Technical specifications for E-Plex 2000 Electronic Pushbutton Locks
