Description

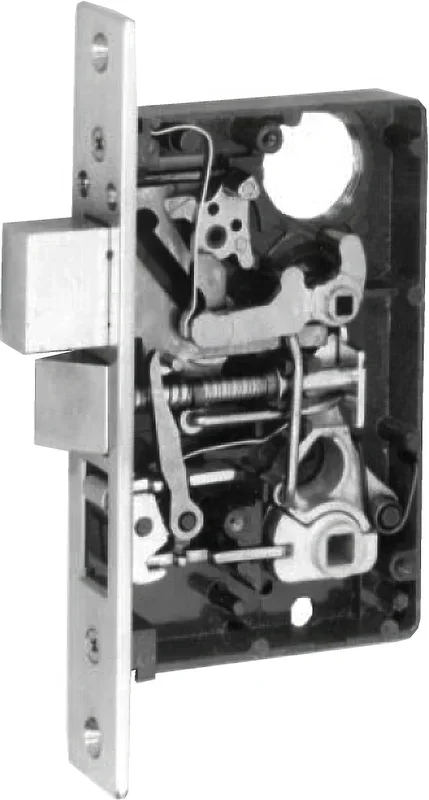

Marks Hardware 9A/3LH Entry Mortise Body for Knob Sets, 2-1/2in Backset, Grade 2, Bright Brass
Marks Hardware 9A/3LH Entry Mortise Body Only offers robust security and exceptional durability, making it an ideal choice for both residential and commercial applications. Designed for knob sets, this mortise body features a 2-1/2 inch backset and a front plate measuring 1-1/16 x 7-5/8 inches, ensuring a perfect fit for standard doors. Engineered to meet ANSI Grade 2 specifications, this mortise body is built to withstand high traffic and heavy use, providing maintenance-free performance. The cast alloy bolt offers a full 1-inch throw, while the solid brass latch provides a reversible 1/2-inch throw, granting flexibility during installation. With a high-pressure cast zamac case and a baked enamel finish, this product not only enhances security but also adds an attractive touch to any door. The 9A/3LH comes with a lifetime mechanical warranty, affirming its quality and reliability. Additionally, it features stainless steel bolts and latches, ensuring longevity and resistance to wear. This model is available in a bright brass finish, lending a polished look that complements various architectural styles. Whether you are a building professional or a knowledgeable homeowner, the Marks Hardware 9A/3LH Entry Mortise Body Only provides the perfect blend of strength, style, and functionality for your security needs.
Entry Mortise Body Only, for Knobs Sets, 2-1/2in Backset, Front 1-1/16 x 7-5/8in, Deadbolt and Latch, Grade 2, 605/US3 Bright Brass
Notice: The info below is not item specific.
Marks USA has been making mortise locks for over 30 years. From their introduction, our mortise locks have enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas. Marks USA mortise locks are engineered to provide years of maintenance-free performance. Our Nova series mortise locks exceed 6 million cycles of continuous use.
Features:
- Meets ANSI grade 1 specification: ANSI-A156.13
- Underwriters laboratories 3-hour fire rating
- BHMA Certified
- Lifetime mechanical warranty
- Available in 2-1/2″ and 2-3/4″ backset
- Stainless steel bolts, latches, independent lever support springs (on lever sets)
Specifications:
- Backset: 2-1/2″
- Bolt throw: Cast alloy full 1″ throw
- Latch throw: Solid brass 1/2″ throw, reversible
- Case: High pressure cast zamac, baked enamel finish
- Front: 1-1/16″ x 7-5/8″, Flat or 3° bevel
- Hubs: 9/32″ on square steel, w/security separator
Keyed Single Cylinder, No Deadbolt Functions:
- D: Office/vestibule
- DW: Vestibule
Keyed Single Cylinder, with Deadbolt Functions:
- A: Entrance, ANSI F08, F10
- B: Entrance, ANSI F21
- F: Dormitory, ANSI F12
- FS: Dormitory
- FW: Dormitory, ANSI F13
Keyed Double Cylinder, with Deadbolt Functions:
- AC: Entrance, ANSI F35
- C: Storeroom, ANSI F14
- FA: Dormitory, ANSI F11
- FX: Dormitory, ANSI F33
Keyless Functions:
- N: Passage, ANSI F01
- L: Bathroom, ANSI F02
- LF: Privacy, ANSI F19
Finishes:
- 3 – Bright brass
- 32D – Stainless steel
- 10B – Dark bronze
Attributes
Alternate Codes: 113367, 113697, 9A/3LH, 9A3LH
Backset: 2-1/2″
Bolt Throw: 1″
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Faceplate Height: 7-5/8″
Faceplate Width: 1-1/16″
Finish Code: 605
Finish Color: Bright Brass, Polished Brass
Function: Entrance, Keyed Single Cylinder, With Deadbolt
Grade: Grade 2
Handing: Left Handed
Latch Throw: 1/2″
Manufacturer: Marks USA
Series: Series 9
