Description

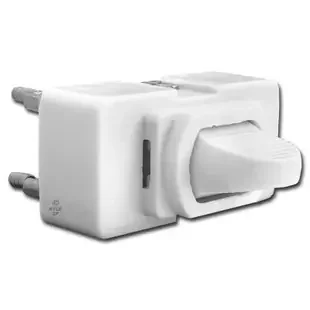

Update your old PCS Enercon switches with this white momentary light switch and adapter set. The included adapter allows you to use this white momentary switch to replace a vintage positive control switch in an Enercon low voltage lighting system. Fits Despard light switch plates and mounting straps; determine type and quantity based on the layout and the orientation of your switches.
Features
- INCLUDES: set includes switch and adapter wires; (if needed, order plates or brackets separately – not included)
- 3A, 24V AC/DC 3-wire momentary contact switch
- crimp connectors for prongs make installation easy
- 1-7/16″ tall x 13/16″ wide x 1/2″ deep
- replaces 4-contact Enercon PCS switch (or PCSPL if you no longer need lighted switches)
- rock switch to turn lights on or off, returns to center when released
- can be wired in parallel to create 3-way switches (4-way, etc., or more)
- Pass & Seymour switch manufactured in Mexico
- includes SSA for adapting SPDT switch for use in Enercon low volt system
- use with Enercon TR relay transformer
- use with copper or copper-clad wire only
- requires a Despard mounting bracket
- wiring diagram included
Find more low voltage light system components.
