Description

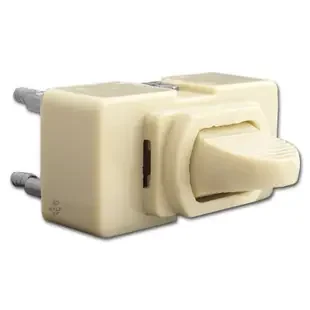

Use this ivory trigger light switch and adapter set to replace an old Enercon PCS low voltage switch. This Despard style switch will fit the old Enercon wall plates but may require a new mounting strap. Fits Despard light switch plates and mounting straps; style of each is determined by the number of switches and the orientation of them on your cover.
Features
- INCLUDES: set includes one switch and one adapter (purchase plate and strap separately – not included)
- replaces 4-contact Enercon PCS switch (or PCSPL if you no longer need lighted switches)
- 3A, 24V AC/DC 3-wire switch with crimp connectors
- 1-7/16″ tall x 13/16″ wide x 1/2″ deep with 3 prongs
- momentary contact – push up/down to control lights, switch handle returns to center
- can be wired in parallel to create 3-way switches (or more)
- switch made by Pass & Seymour in Mexico
- 1091-I; momentary switch comes in 2 other colors
- use with copper or copper-clad wire only
- includes an SSA switch adapter for use with Enercon TR relay transformer
- requires a Despard installation bracket for holding the switch in place
- wiring diagram included
Find more low voltage lighting components.
