Description

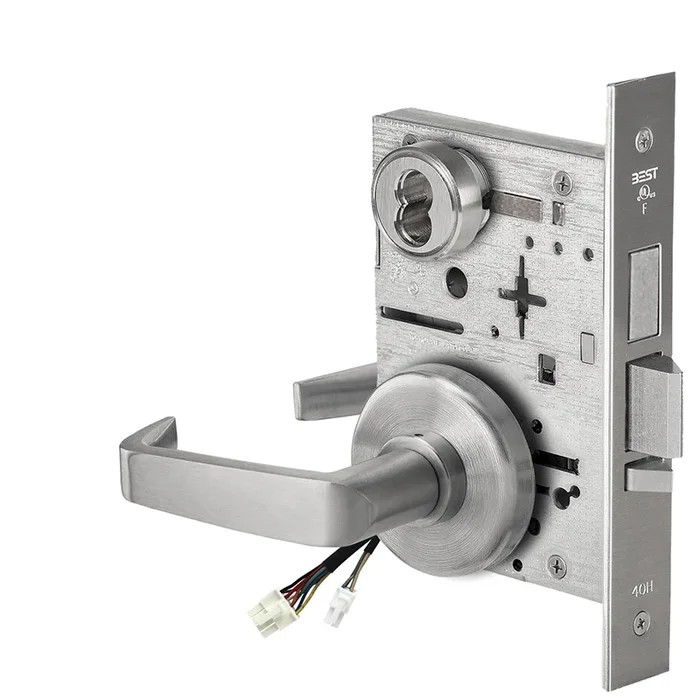

Best 45HW7TDEL15H626RQE Electrified Mortise Lock 24V DC
BEST 45HW7TDEL15H626RQE Electrified Mortise Lock 24DC combines advanced security features with exceptional functionality, making it an excellent choice for commercial and industrial applications. This fail-safe electrified mortise lock operates on 24VDC power and includes a robust deadbolt, ensuring reliable protection and ease of access. The lock features a sleek satin chrome finish, with a 15 lever and H rose design that adds a modern touch to any door. Designed for durability, the 45HW Series builds on the proven performance of the 40H Series, offering enhanced flexibility for integration with electronic access control systems. With a bolt projection of 3/4″ for the latch and 1″ for the deadbolt, this lock provides a strong level of security while allowing free egress at all times. It is rated Grade 1 for superior strength and features a fire rating of 3 hours, ensuring compliance with safety standards. The lock is field reversible for easy handing and is compatible with SFIC prep less cores. With a limited warranty of 5 years, the BEST 45HW7TDEL15H626RQE offers peace of mind and low maintenance requirements, making it a reliable choice for professionals seeking high-performance door hardware.
Electrified Mortise Lock 24DC
Fail Safe, 24V, With Deadbolt, Electrified Mortise Lock, 15 Lever, H Rose, Request to Exit, Satin Chrome
The BEST 40H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 40H Series remains a low maintenance product that is easy to reconfigure and install. The 40HW Electromechanical Lock provides Fail Safe or Fail Secure operation for electronic access control and offer multiple switch options.
Electromechanical Lever Locks
The 45HW Series electromechanical locks build on the heavy-duty performance of the 40H series. The electrified option allows integration to online access systems while preserving durability and reliability.
Attributes
Manufacturer surcharge: 7.0%
Amp Draw: .75 Amps
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch, 1″ Deadbolt
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: TDEL-Fail Safe
Grade: Grade 1
Handing: Field Reversible
Leverknob Design: 15 Lever
Limited Warranty: 5 Years
Lock Face Size: 8″ X 1-1/4″
Operating Voltage: 24VDC
Origin: USA
Pack Height: 3″
Pack Height 2: 12.25″
Pack Length: 11.5″
Pack Length 2: 12.75″
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75″
Pack Width 2: 10.5″
Power: Hard Wired
Roseescutcheon Design: H – Rose
Screws: Combination
Series: 45HW Series Electromechanical Mortise Locks
Ship Weight: 6.4 lbs.
Std Strike Height: 4-7/8″
Std Strike Number: 40HST1
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Mortise Lock
Switch Type: RX
Type: Electric Locks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
Resources
- 40H Mortise Decorative Levers
- 40H Series Catalog
- 40H Series Frequently Asked Questions
- 40H Series Sell Sheet
- 40H Series Service Manual
- 40H Series Video
- 45HW & 47HW Electrified Mortise Locks Specifications
- 45HW & 47HW Electrified Mortise Locks Template
- 45HW Series Electromechanical Mortise Locks Cut Sheet
- 45HW and 47HW Installation Instructions
- Agion Antimicrobial Finish for Healthier Door Hardware Flyer
- Dormakaba Antimicrobial Protected Door Hardware Brochure
- Video: 40H Mortise Lock Installation
