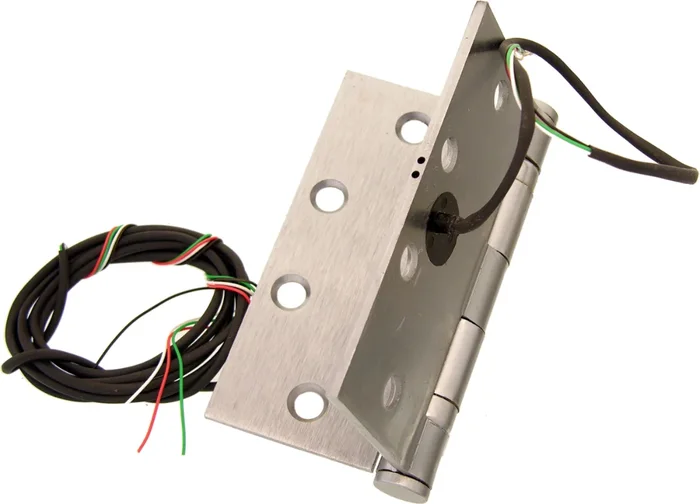

Command ETH12WH4545-630 CH-BB91 Electrified Hinge 4.5″x4.5″, 2/20 10/28 Gauge, Fire Rated Stainless Steel
Command Access ETH12WH4545-630 CH-BB91 Electrified Hinge offers a seamless solution for passing low voltage power from the hinge jamb to the lockset, ensuring no exposed wires compromise your security setup. This 4.5in x 4.5in hinge features a robust 5-knuckle design with ball bearing support, providing smooth operation and durability for high-traffic applications. Constructed from fire-rated stainless steel with a satin finish (630/US32D), this standard weight hinge is ideal for use with electric mortise and cylindrical locks, electric strikes on paired doors, electric exit trims, and door-mounted card readers. With a center-located wire access hole and a non-conductive wire access cap, it enhances safety and ease of installation. The ETH12WH4545-630 supports a wire configuration of 12 wires, including two 20-gauge and ten 28-gauge wires, accommodating a current of 1A@24V per pair. It also comes with a 4-foot lead at no additional charge and is backed by a 3-year warranty, ensuring reliable performance over time.For professionals seeking a dependable and versatile electrified hinge, the Command Access ETH12WH4545-630 is a top choice that combines functionality, safety, and style in one effective solution.
Electrified Hinge, 4.5in x 4.5in (4545), Wires 2/20 Gauge + 10/28 Gauge, 5-Knuckle, Ball Bearing, Standard Weight, Fire Rated Stainless Steel Base, 630/US32D Satin Stainless Steel
Notice: The info below is not item specific.
The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights. We can modify almost any hinge and we maintain a large inventory of most major hinge brands in various sizes and Finishes. Contact us if what you need is not listed.
- UL-F Rated
- 4′ Lead available at no charge
- Center located wire access hole
- Non-conductive wire access cap for added protection
- 3-Year Warranty
Configurations Available: Molex Connectors available
- ETH2W – 2 Wire (20 gauge) – 4A@24V (per pair)
- ETH4W – 4 Wire (26 gauge) – 1A@24V (per pair)
- ETH6W – 6 Wire (26 gauge) – 1A@24V (per pair)
- ETH8W – 8 Wire (28 gauge) – 1A@24V (per pair)
- ETH1OW – 10 Wire (28 gauge) – 1A@24V (per pair)
- ETH12W – 12 Wire (28 gauge) – 1A@24V (per pair)
Configurations Available for Electric Latch Retraction: Molex Connectors not available with heavy gauge wires
- ETH2WH – 2 Wire (18 gauge)
- ETH4WH – 2 Wire (18 gauge) + 2 Wire (26 gauge)
- ETH6WH – 2 Wire (18 gauge) + 4 Wire (28 gauge)
- ETH8WH – 2 Wire (18 gauge) + 6 Wire (28 gauge)
- ETH1OWH – 2 Wire (18 gauge) + 8 Wire (28 gauge)
- ETH12WH – 2 Wire (18 gauge) + 10 Wire (28 gauge)
Features
- 4′ Lead available at no charge
- Non-conductive wire access cap for added protection
- Center located wire access hole
- 3-Year Warranty
- UL-F Rated
Attributes
Alternate Codes: ETH12WH4545-630 CH-BB91, ETH12WH4545630CHBB91
Category: Electrified Hinges, Hinges
Finish Code: 630
Finish Color: Satin Stainless Steel
Handing: Non-Handed
Hinge Size: 4.5″ x 4.5″
Hinge Style: 5 Knuckle
Hinge Type: Butt Hinge, Electric Hinge
Mounting Holes: 8 Holes
Wire Quantity: 12 Wire
