Description

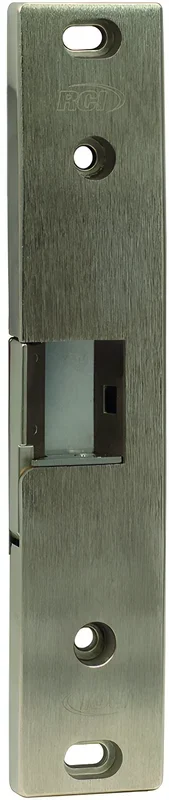

Rutherford Controls 0163-32D Electric Strike 1/2in for Rim Exit Device, Fail-Secure, Brushed Stainless Steel
Rutherford Controls 0163-32D Electric Strike is a robust solution designed for rim exit devices with Pullman latches, ideal for applications where space is limited, such as aluminum storefronts. This surface-mounted electric strike features a fail-secure design, ensuring that the door remains locked during a power outage, providing an essential layer of security. Crafted from high-grade brushed stainless steel (630/US32D), the 0163-32D combines strength with a sleek aesthetic. Its innovative pivoting strike keeper enhances latch engagement, accommodating a 1/2-inch latch projection and allowing for horizontal adjustment up to 1/4 inch to compensate for door misalignment. The lockdown holes ensure a secure installation, and the unit operates cooler to the touch, eliminating the need for a suppressor kit. With a static strength of 1,500 lbf and a dynamic strength of 70 ft-lb, this electric strike is built for endurance, rated for 500,000 cycles. It features plug-in wire connectors for easy installation and is UL294 and UL1034 listed for safety and burglary resistance.The Rutherford Controls 0163-32D is a dependable choice for professionals seeking high-performance access control solutions that marry functionality with durability.
Electric Strike 1/2in for Rim Exit Device, for Pullman Latches, Surface Mounted, 1-2/24VAC/VDC, Fail-Secure, 630/US32D Brushed Stainless Steel
Notice: The info below is not item specific.
This solenoid rim strike is a surface-mounted electric strike designed to work with pullman style rim exit device latches. Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.
Features:
- Designed to fit in tight situations where the exit device is mounted very close to the door frame, e.g. aluminum storefront applications.
- For maximum latch engagement, the strike keeper has been designed to pivot out of the strike body versus rolling out of the strike.
- Accommodates 1/2″ (13 mm) latch projection.
- Horizontal adjustment ensures proper latch positioning to compensate for door misalignment – up to 1/4″ (6.4 mm).
- Shim may be added to the strike cavity to engage with misaligned deadlatch.
- Lockdown holes for secure mount.
- Cooler operation – runs cool to the touch; no suppressor kit needed.
- High-grade stainless steel ensures superior strength and creates a sleek aesthetic.
- Non-handed.
- Plug-in wire connectors.
- Energy: 270mA (max at 12VDC), 11-16VAC, 12VAC/VDC Or 24VAC/VDC
- Mode: Fail-Secure
- Strength: 1,500lbf Static, 70ft-lb dynamic
- Endurance: 500,000 Cycles
- Warranty: 10 Year limited
- Monitoring: Optional latch monitor model available
Technical Details:
- Dimensions: 1-3/4″ W x 9″ H x 1/2″ D (45mm x 229mm x 13mm)
- UL294 Listed for access control unit accessory.
- UL1034 burglary-resistant listed.
Accessories:
- 0162DDH: Double door housing, SPC finish (SPC = silver powder coat)
Attributes
Alternate Codes: 0163 US32D, 0163US32D, RCI0163 US32D, RCI0163US32D
Category: Access Control, Electric Strikes
Certifications: A156.31, ANSI, BHMA, UL 1034, UL 294
Current Draw: 270mA (max at 12VDC)
Depth: 1/2″
Door Application: Electric Strikes
Dynamic Strength: 70lbs
Electric Strike Type: Pullman Latchbolt Strike, Rim
Endurance: 000 Cycles, 500
Fail Safe/ Fail Secure: FSE- Fail Secure
Finish Code: 630
Grade: Grade 1
Height: 9″
Holding Force: 1500lbs
Series: 0 Series
Voltage: 11-16, 12, 24
Voltage Type: Field Selectable, VAC – Alternating, VDC – Direct
Width: 1-3/4″
