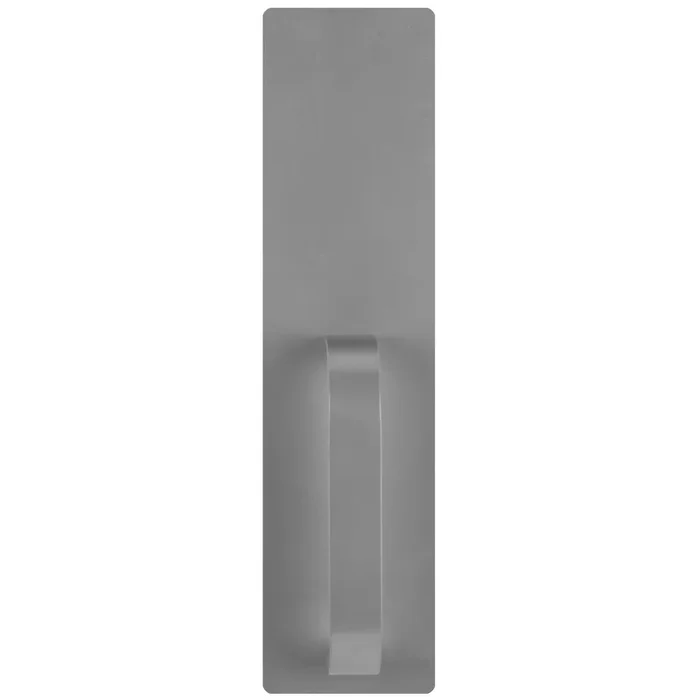

Dummy Pull Value Series, 689/SP28 Lacquer-Sprayed Aluminum – Detex Corporation

Description

Detex 02A 689 DTX Exit Device Trim

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series Concealed Vertical Rod devices. Detex uses the BHMA functions/s for all trims

Features

• 03 – Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 02 – Entrance by trim when actuating bar is locked down (dummy trim)
• 01 – Exit only, no trim or blank escutcheon
• 03: Entrance by trim when latch bolt is released by key. Key removable only when locked.
• 01: Exit only, no trim or blank escutcheon
• 02: Entrance by trim when actuating bar is locked down (dummy trim)

Attributes

Alternate Codes: 02A689

Base Material: VARIES

Category: Panic Device Trims, Panic Devices & Exit Alarms

Commercial Residential: Commercial

Compatibility: Value Series Devices

Device Type: Trim

Door Application: Panic Device Trims

Finish: 689/US28

Finish Code: 689

Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum

Finish : Aluminum Painted

Fire Rated: No

Function: Dummy Trim, Lever

Handing: Right Handed Reverse

Installation: Commercial

Manufacturer: Detex Corporation

Pack Height: 3.5″

Pack Length: 14.5″

Pack Qty: 1

Pack Width: 4.75″

Series: Detex Exit Device Trims

Ship Weight: 2 lbs.

Subtype: Exit Device Trim

Trim Option: Escutcheon Trim

Trim Type: Dummy Pull

Type: Exit Devices
