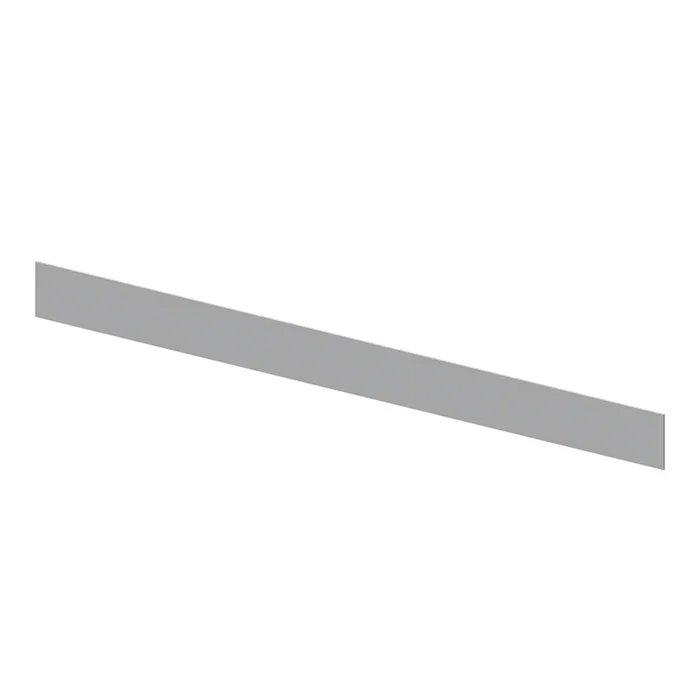

Drop Plate, Top Rail ANCLR by LCN – Durable Door Closer Mounting Plate

Description

LCN 9530-18 628 39-1/2 Top Rail Drop Plate ANCLR

LCN 9530-18 628 39-1/2 Drop Plate, Top Rail ANCLR offers a versatile solution for both accessibility and manual operation in commercial spaces. Designed specifically for the 9530 Senior Swing Series, this drop plate is ideal for narrow top rails or flush ceilings, featuring a clear anodized finish that enhances durability while providing a sleek, matte silver appearance. This ADA-compliant door operator facilitates easy wheelchair access, automatically opening doors when activated, while also allowing seamless manual operation for pedestrian traffic. The unit includes a motor gearbox, control box, standard arm, header, and all necessary mounting hardware for straightforward installation. The standard header length is 36 inches, with customizable options available to extend from 33 inches to a maximum of 49 inches, accommodating various door widths. For double doors, a header can be specified up to 98 inches. Notably, the adjustable hold-open period ranges from 2 to 32 seconds, ensuring convenience in both automatic and manual modes. Designed for commercial use, the LCN 9530-18 drop plate is a reliable choice for building professionals seeking to enhance accessibility and functionality in their projects.

Drop Plate, Top Rail ANCLR

Drop Plate, Narrow Top Rail or Flush Ceiling, Clear Anodized

he 9530 Senior Swing Series by LCN is an ADA door operator that is a two-in-one swing door operator.

The 9530 Series is a Senior Swing operator, which meanswhen activated itopens doors automatically for wheelchair access, yet allows for manual operation for regular pedestrian traffic.

• 9530 series operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware. Actuators available separately
• Single door, surface mounted.
• Meets ADA requirements (power mode only).
• Handed product.
• 36” header length is standard. Specify length 33” to 49” max.
• Double door header available up to 98”, specify other length 49” to 98” max. Consult factory regarding this option.
• Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

Attributes

Manufacturer surcharge: 4.5%

Baa Qualified: Yes

Commercial Residential: Commercial

Finish: 628/US28

Finish Family: Matte Silver

Installation: Commercial

Pack Qty: 1

Series: 9530 Series Electromechanical Senior Swing Operators

Subtype: Door Closer Mounting Plates

Type: Door Closers and Operators

Unit of Measure: Each

Resources

• 9530 Series Electromechanical Senior Swing Operators Cut Sheet
• Choosing the Right LCN Auto Operator
• LCN 2800 Series Installation Instructions
• LCN 2800 Series Senior Swing Control Box Installation Instructions
• LCN 4840 Series Product Guide – Automatic Operators
• LCN Auto Operators Catalog
• LCN Electromechanical Auto Operator Series Product Guide
• LCN Electromechanical Automatic Operators Data Sheet
• LCN Senior Swing Installation Video
• Von Duprin Finishes Chart
