Description

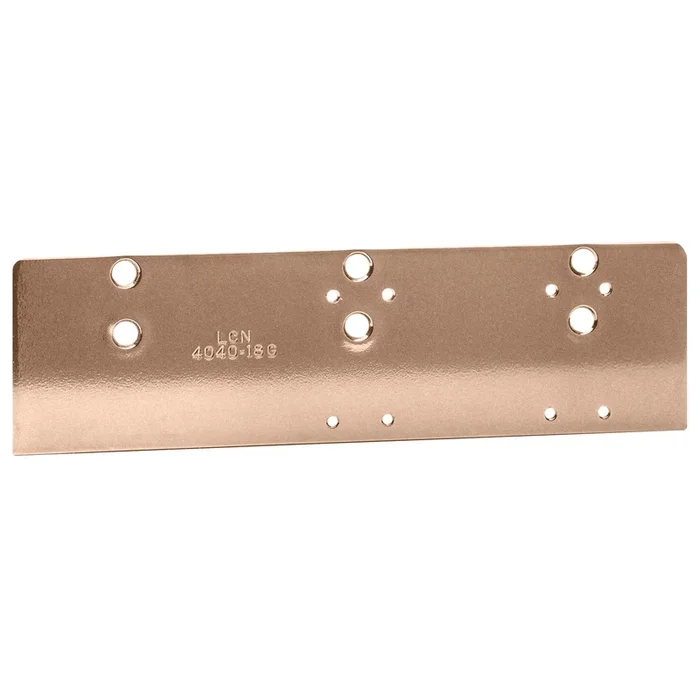

LCN 4040XP-18G 691 Top Jamb Drop Plate LTBRZ
LCN 4040XP-18G 691 Drop Plate, Top Jamb LTBRZ is engineered to provide a seamless solution for top jamb mounted closers, ensuring they sit flush with the head frame face in flush ceiling conditions. Finished in a light bronze hue, this drop plate complements various architectural styles while enhancing functionality. Designed for demanding high-traffic environments, the LCN 4040XP series is known for its durability and robust performance. The heavy-duty closer features a non-handed design, making it versatile for different door applications. It boasts an impressive 44% increased bearing load capacity, the strongest pinion with a 3/4″ journal diameter, and wider bearing dimensions for enhanced strength.The innovative V-shield™ seal offers a 20% longer lifespan, ensuring reliability in real-world applications. Engineered with cast iron and forged steel components, the closer is built to withstand heavy use. Installation is fast and accurate, supported by the LCN® Fast™ Power Adjust feature.With UL and cUL listings for self-closing doors and compliance with ADA requirements, the LCN 4040XP Drop Plate is the perfect choice for commercial installations. It comes with a generous 30-year limited warranty, reflecting LCN’s commitment to quality and performance.
Drop Plate, Top Jamb LTBRZ
Drop Plate, Locates Top Jamb Mounted Closer Flush with Top of Head Frame Face in Flush Ceiling Condition, Light Bronze Finish
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 691
Finish Family: Matte Bronze
Grade: Grade 1
Installation: Commercial
Limited Warranty: 30 Years
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Mounting Plates
Type: Door Closers and Operators
Unit of Measure: Each
