Description

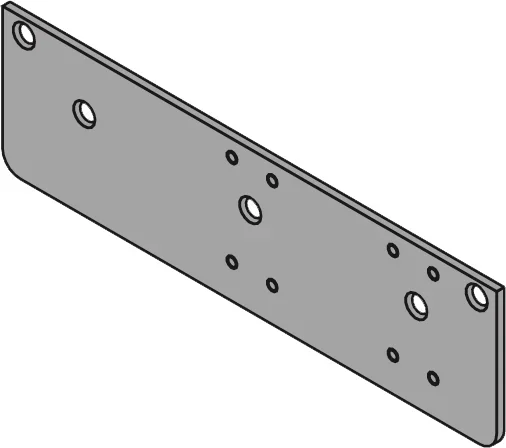

LCN 4040XP-18-AL 4040XP Drop Plate – Aluminum Finish
LCN 4040XP18AL Drop Plate for 4040XP 689 Aluminum Finish is a vital accessory designed specifically for the 4040XP Series door closers. This drop plate facilitates mounting in narrow top jamb spaces, making it an ideal solution for a variety of applications within high-traffic facilities such as schools, hospitals, and government buildings. Crafted from durable cast iron, the drop plate is finished in an elegant aluminum (Finish Code: 689), ensuring both functionality and aesthetic appeal. LCN is renowned for its commitment to quality and reliability, which is backed by a limited 30-year warranty. This drop plate is part of a broader range of over 35 series of door closers and hardware, providing customers with a variety of options to meet their specific safety and security needs. Each component is precision-engineered, often featuring stamped or raised casting and forging numbers for authenticity. With a UL 10C rating, the LCN 4040XP18AL Drop Plate guarantees performance during critical moments, offering peace of mind to facility managers and building professionals. Its compatibility with the 4040XP series ensures seamless integration, making this drop plate a must-have for any robust door closure system.
Drop Plate for 4040XP 689 Aluminum Finish
LCN products can be found in many high-traffic facilities such as schools, hospitals, government buildings, and correctional facilities. With innovative door closure solutions, LCN products are trusted to work seamlessly during critical moments. With our high standards of performance, customers have peace of mind knowing their facilities are protected. We have 35 different series of closers and door hardware to choose from and 15 to 20 years of operating life on our products. LCN has unmatched expertise to meet all safety and security challenges.
- Each closer (except 4040, 4040T, 4030, 4030T) is designed for a specific mounting; hinge side, top jamb, or parallel arm. 4040 closer with regular or hold-open arm mounts hinge side or top jamb. P4030 & P4040 closers include 62PA shoe required to parallel arm mount either regular or hold-open arm.
- Handed for right or left swinging doors, except 4000T, 4030, 4030T, 4040, and 4040T
- Closers to meet ADA reduced opening force requirements except 4000T
- Adjustable hydraulic backcheck cushions opening swing prior to 90°
- Separate regulation of general closing speed and latching speed
- Joints in regular arm and shoe adapt to uneven trim
- Reversible shoe to boost latching power or double lever arms
- Available in a wide range of standard or optional custom powder coat finishes to blend with door and frame
- Plated finishes available to accent door and frame
- Not designed for exterior mounting or exposed to elements
- Many LCN Parts or Components Have Casting or Forging Numbers Stamped or Raised on the Surface
- For Use with 4040XP Series
- Many Parts are Series Specific, Specify When Ordering
- Many Parts are Finished, Specify When Ordering
- Drop Plates are Used for Mounting on a Narrow Space Top Jamb
Features
- Requires minimum 2″ (51 mm) minimum top rail
- Required for hinge side mount where top rail is less than 3-3/4″ (95 mm)
Attributes
Alternate Codes: 125134, 4040-18AL, 404018AL, 4040XP-18-AL, 4040XP-18AL, 4040XP18AL, 4040XPXP-18AL, 4040XPXP18AL, 813170, LCN4040-18AL, LCN4040XP-18AL, LCN4040XPXP-18AL
Baa Qualified: Yes
Category: Door Closers and Accessories
Closer Accessory Type: Drop Plate
Country of Origin: Usa
Finish: Aluminum
Finish Code: 689 (AL)
Finish Color: Aluminum
Finish : Aluminum Painted
Hazardous Material: NO
Hold Open: No
Manufacturer Warranty: Limited 30 Year Warranty
Material: Cast Iron
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-09-10
Series: 4040XP Series
Subcategory: Closer Parts
Subtype: Door Closer Mounting Plates
Type: DOOR CLOSERS
Ul Listing Type: UL 10C Rated
