Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 19 – Hafele

Description

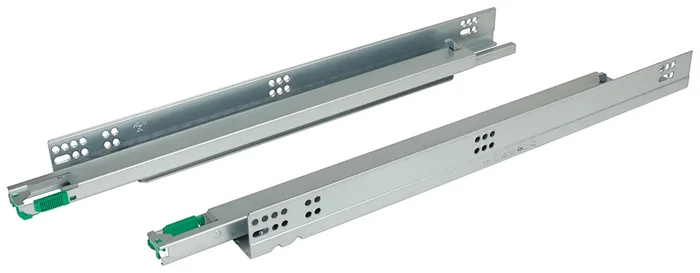

Hafele 433.19.772 Grass Dynapro 2.0 Concealed Undermount Drawer Slide

Hafele 433.19.772 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 19 delivers exceptional performance and reliability for modern cabinetry. This full extension drawer slide is designed with a 12″ length, making it ideal for various drawer applications. Its integrated soft close liquid damping mechanism ensures a sleek, smooth closing action, enhancing the overall user experience by minimizing noise. The fully synchronized runner guarantees seamless and silent operation, promoting ease of use in any setting. With continuous self-locking functionality, drawers remain securely in place when pushed closed. The innovative clip features allow for precise alignment adjustments, including side-to-side, height, depth, and tilt, ensuring that your drawers are perfectly fitted every time. Tool-less adjustments make installation straightforward, with a height adjustment range of +3.5 mm (9/64″) and side and depth adjustments of ±1.5 mm (1/16″) and +3 mm (1/8″), respectively. Constructed from durable zinc-plated steel, this drawer slide boasts a robust load-bearing capacity of 40 kg, meeting or exceeding BHMA Grade 1 testing requirements. Designed for drawer boxes between 12.7 mm and 19 mm (1/2″ – 3/4″), the Hafele 433.19.772 is the perfect choice for those seeking quality and precision in their cabinetry.

Grass -Undermount Drawer Slide, Dynapro 2.0 19

Full Extension, 12″ length

Integrated soft close liquid damping provides sleek, smooth closing Fully synchronized runner for the ultimate in smooth silent operation Continuous self-locking of drawer when pushed onto the drawer Clip features: Side to side, height, depth and tilt adjustment for perfect drawer alignment – Tool-less integrated height adjustment +3.5 mm (9/64″) – Tool-less adjustment adapter for side adjustment ±1.5 mm (1/16″) and depth adjustment +3 mm (1/8″) Meets or exceeds BHMA Grade 1 testing requirements

Attributes

Color/finish: Zinc-plated

Comfort functions opening/closing: Soft close fluid damped

Drawer length: 305.00 mm

Features: 2-D

Load bearing capacity: 40.00 kg

Material: Steel

Model: F130100733204

Type of pull out: Full extension

Version: For 12.7 – 19 mm (1/2″ – 3/4″) drawer box

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.66A
