Drawer Side Runner, Grass Zargen 6036 (3-3/8 inch) by Hafele

Description

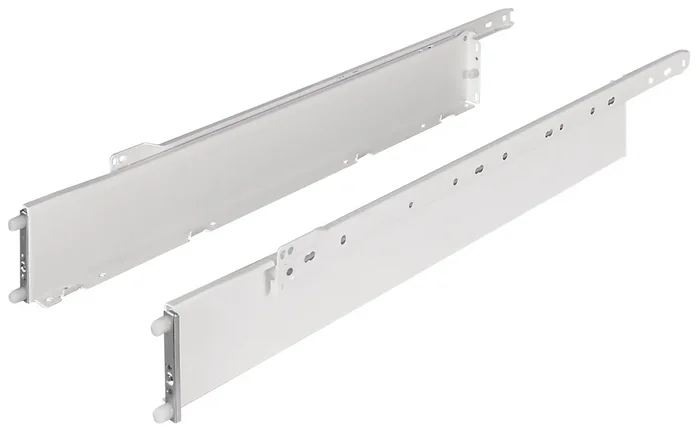

Hafele 558.27.755 Grass Zargen 6036 Drawer Side Runner, 3-3/8″ Height

Hafele 558.27.755 Drawer Side Runner, Grass Zargen 6036 (Side Height 3-3/8″) offers an ideal solution for smooth and efficient drawer operation. With a length of 550 mm (21 5/8″), this runner is engineered to support a load-bearing capacity of up to 45 kg, making it perfect for a variety of applications in both residential and commercial settings. Designed for quick assembly, the runner features dowelled and integrated front fixing brackets, ensuring a hassle-free installation process. The soft-close and self-close functions enhance user experience, providing a gentle and quiet closure every time. For optimal performance, a minimum bottom clearance of 3 mm (1/8″) is recommended, allowing for flexibility in installation. Crafted from durable steel with a sleek white finish, this drawer side runner is not only functional but also adds a modern touch to your cabinetry. It accommodates panel thicknesses ranging from 5/8″ to 3/4″ for the back and 1/2″ to 3/4″ for the bottom, ensuring compatibility with various drawer types. Supplied in sets of 10 with bulk packing available, the Hafele 558.27.755 is a reliable choice for any project demanding quality and efficiency.

Drawer side runner, Grass Zargen 6036 (Side Height 3-3/8″)

(21 5/8″) 550 mm length, model 11901-04

Made in the USA Quick assembly through dowelled and integrated front fixing brackets
Allow minimum of 3 mm (1/8″) for bottom clearance. If screws are used, increase clearance accordingly. Drawer slide attachment: Wood screws #6 x 5/8 FHP; Euro screw for 5 mm system holes. Bottom panel length = slide length – panel thickness – 3 mm. Bottom panel width = ICW – 31 (1 1/4″)

Attributes

Color/finish: White

Comfort function type: Soft-close

Comfort functions opening/closing: Self close

Drawer length: 27″

For max. panel thickness: Back: 3/4″; Bottom: 3/4″

For min. panel thickness: Back: 5/8″; Bottom: 1/2″

Height (inch): 20 1/4″

Length (inch): 21 5/8″

Load bearing capacity: 45.00 kg

Material: Steel

Nominal length: 550.00 mm

Supplied with: 10 Sets **Bulk packing is 300 sets

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.45
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.46
