Schlage M452 W/HDB Double Magnetic Lock Instructions
Schlage Electronics M452 W/HDB Double Maglock delivers uncompromising security with a remarkable 1000 lbs. holding force, ideal for commercial applications. Engineered for efficiency, this electromagnetic lock features a unique bayonet mounting system that simplifies installation, allowing professionals to work hands-free, ensuring a streamlined setup process. Constructed from durable aluminum, the M400 Series maglock combines strength and functionality, making it a reliable choice for high-traffic areas. With a sleek matte silver finish (628/US28), it seamlessly integrates into various architectural styles without compromising on aesthetic appeal. This Grade 1 lock operates at 12/24 VDC and draws a manageable current of 1.5A/760mA, providing flexibility for different electrical systems. Measuring 20-9/16″ in length, 1-3/4″ in width, and 3″ in height, it is designed for robust performance while maintaining a compact profile. The UL 1034 and UL 10C ratings ensure compliance with stringent safety standards, including a 3-hour fire rating, giving you peace of mind in emergency situations.Backed by a limited warranty, the Schlage M452 W/HDB Double Maglock is a top-tier choice for those seeking reliable, long-lasting door security solutions.

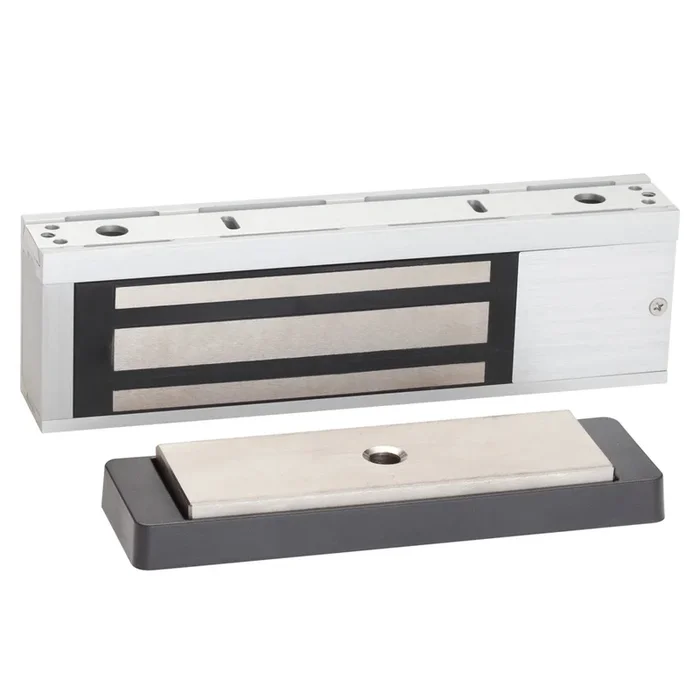

Double Maglock
Double Electromagnetic Lock, 1000 lbs. Holding Force, Herculite Door Bracket
M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process.
The broad portfolio of Allegion’s electromagnetic locks offers a solution for most every application.
Attributes
Manufacturer surcharge: 7.0%
Amp Draw: 1.5A/760mA @ 12/24 VDC Current
Base Material: Aluminum
Base Series: M400 Series
Commercial Residential: Commercial
Finish: 628/US28
Finish Family: Matte Silver
Grade: Grade 1
Holding Force: 1000 lbs.
Installation: Commercial
Limited Warranty: Limited Warranty
Magnet Size: 20-9/16″ x 3″ x 1-3/4″
Operating Voltage: 12/24 VDC
Pack Qty: 1
Pbs Options: 3084720
Product Height: 3″
Product Length: 20.56″
Product Width: 1.75″
Series: Schlage Electronics Electromagnetic Locks
Ship Weight: 20 lbs.
Subtype: Maglocks
Type: Electric Strikes, Bolts, Magnets
Ul Listing: UL 1034, UL 10C 3 hour fire rating
Unit of Measure: Each
