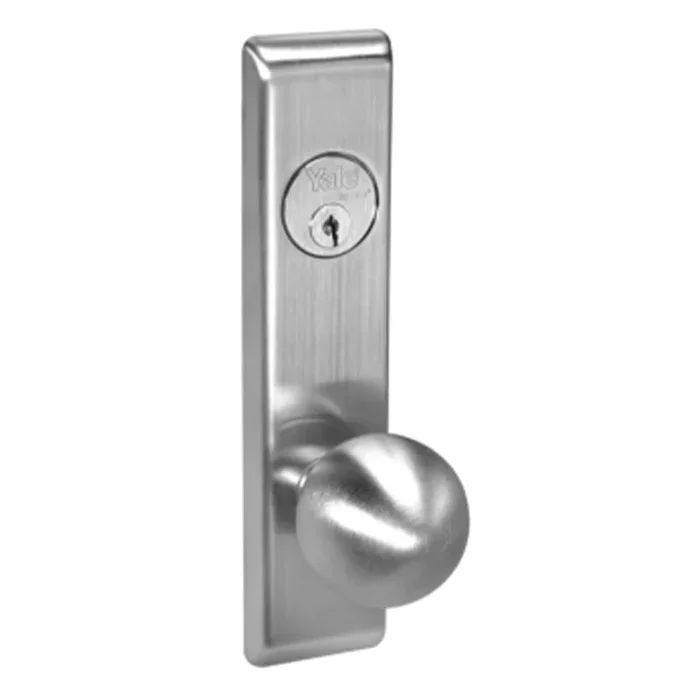

Dormitory Mortise Lock with Copenhagen Knob – Grade 1 Satin Chrome

Description

Accentra B-COE8822X626 Copenhagen Mortise Lock with 1″ Deadbolt, Grade 1, Satin Chrome

Accentra 8800 Mortise Lock Set combines security and convenience in a sleek design, making it an ideal choice for both commercial and residential applications. This lock set features a latchbolt that can be retracted by a knob or lever from either side, ensuring easy access. The deadbolt is operated by a key on the outside and a thumbturn on the inside, providing an added layer of security. When the deadbolt is projected, the outside knob or lever is automatically locked, enhancing your peace of mind. The innovative anti-panic operation allows for quick exit; simply operating the inside knob or lever retracts both the latchbolt and deadbolt, unlocking the outside knob or lever simultaneously. Crafted for durability, the Accentra 8800 Mortise Lock Set is finished in elegant satin chrome (US26D) and is graded as Grade 1, ensuring high security and longevity. It is designed to fit doors with a thickness of 1-3/4″ and includes a square corner latch bolt face with a 3/4″ throw. Field reversible handing provides versatility for any installation. The mortise prep design and compatibility with SFIC cylinders make this lock set a smart choice for those seeking both style and robust security.

Dormitory Mortise Lock, Copenhagen Knob, 1in Deadbolt, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

• Latchbolt retracted by knob/lever either side
• Deadbolt operated by key outside and thumbturn inside
• When the deadbolt is projected, outside knob/lever is automatically locked
• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

Features

• Deadbolt operated by key outside and thumbturn inside
• Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.
• When the deadbolt is projected, outside knob/lever is automatically locked
• Latchbolt retracted by knob/lever either side

Attributes

Backset: 2-3/4″

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Cylinder Included: No

Cylinder Type: SFIC Cylinder

Door Bore Size: Mortise Prep

Door Thickness: 1-3/4″

Door Thickness Max: Specify when ordering

Finish: Satin Chrome

Finish Code: US26D

Function: Dormitory

Grade: Grade 1

Handing: Field Reversible

Keyway: None

Knob Style: Ball Knob

Knob/ Lever Design: Copenhagen

Knob/ Lever Style: Knob

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8 x 1/4″

Latch Bolt Throw: 3/4″

Latch Bolt Type: Deadbolt, Latchbolt

Lock Category: Mortise Lock

Rose/ Escutcheon: 2-9/16″

Rose/ Escutcheon Style: Rose

Series: 8800

Strike Size: 4-7/8″ x 1-1/4″

Resources

• Cut Sheet
