Description
CRL BTS75VBFNH0 Dormakaba BTS75VBF Adjustable Floor-Mounted Door Closer, Size 1-4, No Hold Open
C.R. Laurence Dormakaba Model BTS75VBF Adjustable Spring Power Size 1 to 4, 175 No Hold Open Floor Mounted Door Closer Body in Cement Case delivers unmatched versatility for various door installations. Designed with ADA compliance in mind, this closer accommodates doors up to 42 inches wide and 260 pounds in weight, making it suitable for both residential and commercial applications. The compact design of the BTS75VBF allows it to fit seamlessly into spaces where larger door closers may be impractical. Its universal, non-handed configuration features interchangeable spindles, enabling easy adaptation for single or double acting, center-hung, or offset doors. This ensures compatibility with a range of floor coverings and threshold heights.With a maximum swing of 175 degrees and a hold open option, this floor closer is ideal for high-traffic areas. The independent closing and latching valves allow for precise adjustments based on site conditions and door size.Built to last, the BTS75VBF comes with a 25-year limited warranty and is UL and CUL listed, meeting ANSI A156.4 Grade 1 standards. Enhance your project with a reliable and adjustable door closer that prioritizes both functionality and accessibility.
Dormakaba Model BTS75VBF Adjustable Spring Power Size 1 to 4, 175 No Hold Open Floor Mounted Door Closer Body in Cement Case
- ADA BF Barrier Free, Adjustable Spring Power Size 1 to 4
- Accommodates Doors Up to 42″ (1067 mm) Wide and Weight up to 260 Lbs.
- 25 Year Limited Warranty
- ANSI A156.4 Grade 1, UL and CUL Listed
The
Dormakaba® BT75V Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer’s compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. Available in 90º or 105º hold open and no hold open full swing to 175º models. Accessories such as cover plates, pivots, center-hung and offset arms are also available.
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Although Dorma® BTS BF Series Closers comply with ADA specified opening forces where door without closer attached is 1 lb. opening force, they may not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Attributes
Americans with Disabilities Act: Yes

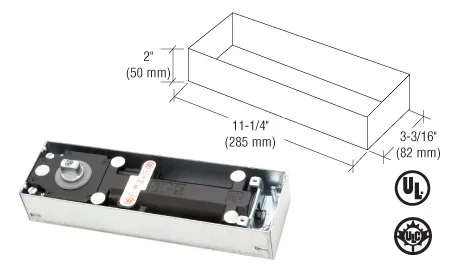

Body Height: 2
Body Length: 11-1/4
Body Widt: 3-3/16
Body Width: 3-3/16
Brand: Dormakaba
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Handing: Double Acting
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width – Exterior: 42 Inches
Maximum Door Width – Interior: 42 Inches
Maximum Weight Center Hung: 260 Pounds
No Hold Open: 175°
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Series: BTS75V
Shipping Limitations: None
Similar: BTS80BF, J994HOD, J990NHOD
Spring Size: 1.2.3.4
UL Listed: Yes
