Description
CRL AR2034BS Dormakaba AR2034 Brushed Stainless Patch Lock for 3/4″ Glass
C.R. Laurence Dormakaba Brushed Stainless AR2034 Series Patch Lock for 3/4″ Glass offers robust security solutions for glass installations. Designed specifically for 3/4″ (19 mm) thick glass, this heavy-duty lock features a high-density cast body that securely encloses more glass within its taller profile housing, enhancing overall stability and safety.Ideal for top and bottom corner applications, this lock can be operated with either double keyed cylinders or a keyed cylinder/thumbturn, both of which must be ordered separately. Optional keepers are available to ensure compatibility with various installations, making this lock versatile for different project needs.Included with the lock, you will find a template and detailed instructions to facilitate easy installation. Please note that glass fabrication is required, including a corner notch for either top or bottom mounting. For double door setups, a bottom patch lock on the inactive leaf is essential for proper security.Constructed with a brushed stainless steel finish, the Dormakaba patch lock is not only resistant to corrosion but also requires periodic maintenance to preserve its factory appearance. Choose this reliable locking solution to enhance the security and aesthetic of your glass installations.

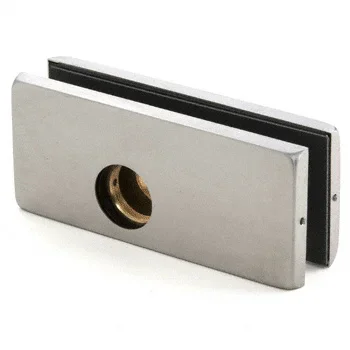

Dormakaba Brushed Stainless AR2034 Series Patch Lock for 3/4″ Glass
- High Density Cast Body with Lock Mechanism
- Gaskets for Use with 3/4″ (19 mm) Glass
- Two Architectural Finishes
The
Dormakaba® American Style Patch Lock is a heavy-duty version of the AMR215 lock for 3/4″ (19 mm) thick glass. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. Optional keepers available to accommodate most installations.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount: One Corner Notch
COMES WITH: Template and Instructions
DOES NOT INCLUDE: Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders and/or thumbturns and keepers are optional and not included with lock body. Works with DRA50 cylinder and/or DRA60 Thumbturn.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/4 in. (19 mm)
Shipping Limitations: None
Resources
- CRL Stainless Steel Disclaimer
- Template AR20 Glass Cut Templates.pdf
