Description
Corbin Russwin DL3260 606 DL3200 T-Turn X Blank Deadbolt Instructions
Corbin Russwin DL3260 606 DL3200 T-Turn X Blank Dbolt offers a robust solution for securing your doors with confidence. This cylindrical deadlock features a thumbturn x blank design, crafted in elegant Satin Brass, ensuring both functionality and aesthetics. Engineered with a solid steel deadbolt, it includes a hardened, free-spinning steel pin insert that provides superior resistance to tampering. Designed for versatility, the DL3200 is certified to 156.5 Grade 1 standards, making it ideal for high-traffic areas requiring enhanced security. With a 1″ throw and standard for 1-3/4″ door thickness, it accommodates additional door thicknesses as needed. The deadlock is non-handed, providing flexibility in installation, and is compatible with 2-3/4″ or 2-3/8″ backsets, allowing for customization based on your specific needs. For added peace of mind, the DL3260 is UL listed for use with fire-rated doors, reinforcing its reliability in critical situations. It includes two nickel silver keys and offers various keying options, including master keying and visual key control. Enhance the security of your property with the Corbin Russwin DL3260, a blend of durability, style, and advanced locking technology.

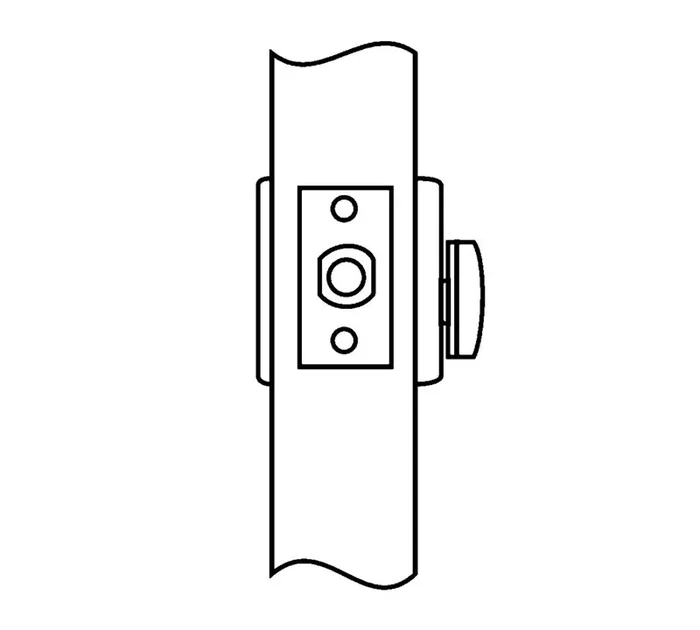

DL3200 T-Turn X Blank Dbolt
Thumbturn x Blank,Satin Brass
Corbin Russwin is pleased to introduce the DL2200 and DL3200 cylindrical deadlocks. These easy to install deadlocks feature a solid steel deadbolt – with a hardened, free spinning, steel pin insert – and a 1″ throw. Ideal for a variety of applications, the DL2200 is certified to 156.5 Grade 2 standards and the DL3200 is certified to 156.5 Grade 1 standards. FeaturesSolid steel deadbolt with a hardened, free spinning, steel pin insert and a 1″ throw1-3/4″ door thickness standard; additional door thicknesses offeredAvailable in 2-3/4″ or 2-3/8″ backsetsStandard 161 door prepPyramid cylinders optionalUL listed for use with Fire Rated doors
Non-handed cylindrical deadlock.
- Handing Non-handed.
- Door Thickness Standard: 1-3/4″ (44mm). Optional door thicknesses available
- Backset Standard: 2-3/4″ (70mm) Optional: 2-3/8″ (60mm)
- Front Standard: brass or stainless steel, 2-1/4″ (57mm) x 1-1/8″ (29mm). Optional: 1″ width; see Quick Codes.
- Deadbolt 1″ throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
- Strike Standard; 2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes available; see Strikes, this page.
- Cylinder Standard: brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys Two nickel silver standard.
- Keying Features Available Master keying Construction master keying Security Visual key control Concealed key control
- Warranty One-year limited.
Attributes
Base Material: Brass
Bolt Projection: 1″
Burglar Rated: No
Door Thickness: 1-3/4″
Dust Box: None
Finish: 606/US4
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 60-Thumbturn x Blank Deadbolt
Handing: Not Handed
Limited Warranty: 1 Year
Pack Height: 4″
Pack Length: 7.88″
Pack Qty: 1
Pack Volume: 126 in³
Pack Width: 4″
Screws: Combination
Series: DL3200 Series Cylindrical Deadlocks
Ship Weight: 2.5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Type: Deadbolt
Std Strike Height: 2-3/4″
Std Strike Type: Flat
Std Strike Width: 1-1/8″
Subtype: Deadbolts
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- DL2200/DL3200 Installation Instructions
- DL3200 Series Cylindrical Deadlocks Cut Sheet
- Padlocks and Deadlocks Catalog
