DL3000 Double Cyl Deadbolt by Corbin Russwin – Secure Your Property

Description

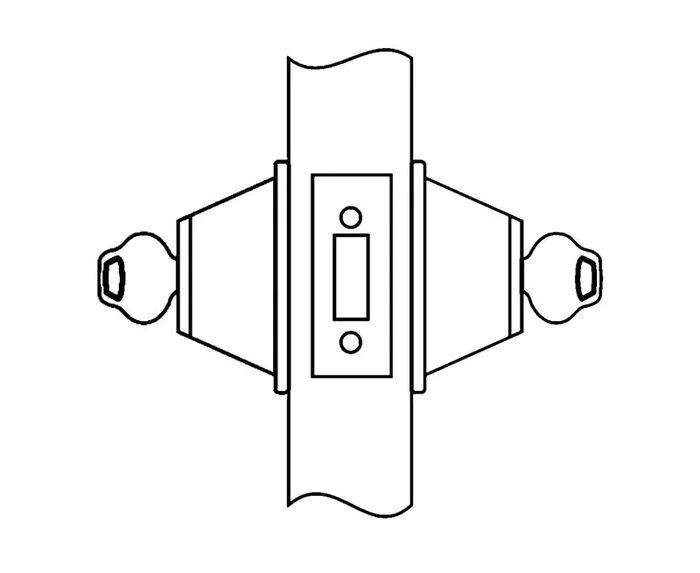

Corbin Russwin DL3012 626 CL6 DL3000 Double Cylinder Deadbolt

Corbin Russwin DL3012 626 CL6 DL3000 Double Cyl Deadbolt delivers robust security with its innovative design and quality materials. This double cylinder deadbolt features a large format interchangeable less core, providing flexibility for various keying options. Crafted in a sleek satin chrome finish, it complements both modern and traditional door aesthetics. Designed for non-handed operation, this deadbolt suits standard door thicknesses of 1-3/4″ to 2-1/4″, with optional sizes available. The standard 2-3/4″ backset ensures compatibility with a wide range of installations, while the durable zinc diecast hardened steel insert offers a reliable 1″ throw for enhanced security. The deadbolt’s front is constructed from wrought brass or bronze, accommodating flat and slightly beveled doors. Included with the lock are two nickel silver standard keys, and a variety of keying features such as master keying and interchangeable core options, ensuring tailored access control. The product comes with a one-year limited warranty, reflecting Corbin Russwin’s commitment to quality and reliability. Upgrade your security with the DL3000 Series, a trustworthy choice for any professional or homeowner seeking dependable door hardware solutions.

DL3000 Double Cyl Deadbolt

Double Cylinder, Large Format Interchangeable Less Core, Satin Chrome

FeaturesHanding: Non-handed, except DL3017, which is handed and field reversible.Door Thickness: Standard – 1-3/4″ (44mm) – 2-1/4″ (57mm). Optional door thicknesses available; see Quick Codes.Backset: Standard – 2-3/4″ (70mm); Optional – 2-3/8″ (60mm)Front: Standard – wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).Deadbolt: Zinc diecast hardened steel insert. 1″ (25mm) throw, 5/8″ (16mm) wide x 3/4″ (19mm) high.Strike: Standard – 2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes availableCylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.Keys: Two nickel silver standard.Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)Warranty: One-year limited.

The DL3000 Series is non handed and available in various finishes.

• Handing:Non-handed, except DL3017, which is handed and field reversible.
• Door Thickness:Standard – 1-3/4″ (44mm) – 2-1/4″ (57mm). Optional door thicknesses available; see Quick Codes.
• Backset:Standard -2-3/4″ (70mm); Optional -2-3/8″ (60mm)
• Front:Standard -wrought brass or bronze, 2-1/4″ (57mm) x 1-1/8″ (29mm). Accommodates flat doors and doors beveled 1/8″ (3mm) in 2″ (51mm).
• Deadbolt:Zinc diecast hardened steel insert. 1″ (25mm) throw, 5/8″ (16mm) wide x 3/4″ (19mm) high.
• Strike:Standard -2-3/4″ (70mm) x 1-1/8″ (29mm). Optional strikes and wrought boxes available
• Cylinder:Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
• Keys:Two nickel silver standard.
• Keying Features Available;Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
• Warranty:One-year limited.

Attributes

Base Material: Brass or Bronze

Bolt Projection: 1 In.

Burglar Rated: No

Cylinder Type: Sargent LFIC Less Core

Door Thickness: 1-3/4 In. – 2-1/4 In.

Dust Box: None

Finish: 626/US26D

Fire Rated: No

Fire Rating: No

Function: 12-Double Cylinder Deadbolt

Handing: Not Handed

Limited Warranty: 1 Year

Pack Height: 2.5″

Pack Length: 6″

Pack Qty: 1

Pack Volume: 63.75 in³

Pack Width: 4.25″

Screws: Combination

Series: DL3000 Series Cylindrical Deadlocks

Ship Weight: 2.3 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Type: Deadbolt

Std Strike Height: 2-3/4 In.

Std Strike Type: Flat

Std Strike Width: 1-1/8 In.

Subtype: Deadbolts

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• DL3000 Installation Instructions
• DL3000 Parts List With Exploded View
• DL3000 Series Cylindrical Deadlocks Cut Sheet
• DL3000WP Parts List With Exploded View
• DL3000WP Wiring Instructions
• EC Declaration of Conformity for the DL3000 Series Cylindrical Lock
• Padlocks and Deadlocks Catalog
