Disc Sliding Door Lock 7/8in – Compx Security Products

Description

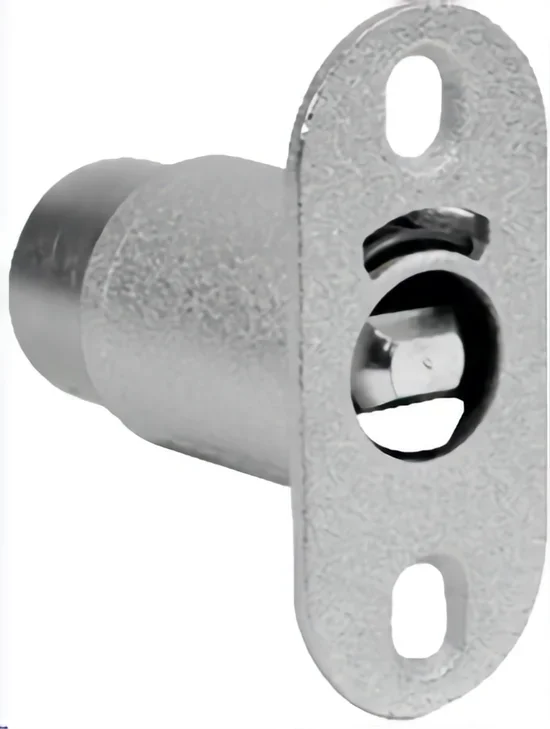

Compx C8042-KD-26D Disc Sliding Door Lock 7/8in

Compx Security Products C8042-KD-26D Disc Sliding Door Lock 7/8in is engineered specifically for wood sliding doors, ensuring a secure and reliable solution for your access control needs. This lock requires a 7/8″ diameter hole for the cylinder, making installation straightforward for professionals and handy homeowners alike.The C8042 model operates with a push-in cylinder, allowing a key turn to engage the bolt behind the strike, while the C8043 variant locks the doors with a simple push. Both models enable key removal in locked and unlocked positions, adding convenience to the locking mechanism.Keying versatility is a standout feature, as this lock can key together with all other disc tumbler locks utilizing the D8785 key blank. Additionally, it supports master keying with the E41A using the D8783 key blank, providing enhanced security options for multi-access environments.Included with the lock are two keys, a strike, and mounting screws for a complete package. If a trim ring is needed, it can be ordered separately as C2017. Finished in a sleek satin chrome (US26D), the C8042-KD-26D not only meets functional demands but also complements the aesthetics of any sliding door installation.

Disc Sliding Door Lock 7/8in

Notice: The info below is not item specific.

• Application: For wood sliding doors. Requires a 7/8″ diameter hole in front door for cylinder.
• Operation: C8042 push in cylinder, key turn engages bolt behind strike. C8043: pushing in cylinder locks doors. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for keying.
• Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

Part No.	Installation	Bolt Type	Cylinder Length	Bolt Travel	KA * Codes	KD Changes	MKKD Changes	Case QTY	Reference Number	Non MK Key Blank
C8042-26D	Sliding Doors	90° Turn Hook	7/8″	7/16″	3	200	–	10	MA-0057-001	D8785
C8043-26D	Sliding Doors	Plunger	1″	7/16″	6	200	200	10	M4-0055	D8785
C8043-3	Sliding Doors	Plunger	1″	7/16″	6	200	–	10	M4-0055	D8785
C8043-14A	Sliding Doors	Plunger	1″	7/16″	6	200	–	10	M4-0055	D8785

Key Codes Used:

• 1 Code – C415A
• 3 Codes – C346A, C413A and C415A
• 6 Codes – C346A, C390A, C413A, C415A, CC420A and C642A

Features

• Master keying to E41A using D8783 key blank.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for keying.
• Application: For wood sliding doors. Requires a 7/8″ diameter hole in front door for cylinder.
• Operation: C8042 push in cylinder, key turn engages bolt behind strike. C8043: pushing in cylinder locks doors. Key removable in both locked and unlocked positions.
• Packaging: Supplied with two keys, strike and mounting screws. If trim ring is required, order C2017 separately.

Attributes

Alternate Codes: 115826, 560091, C8042-KD-26D, C8042KD26D, COMC8042KD26D

Category: Cam & Drawer, Cam & Drawer Locks Etc., Lock Sets

Finish Code: US26D

Finish Color: Satin Chrome

Lock Style: Sliding Door Lock

Size: 7/8″

Resources

• Cut Sheet
