Description

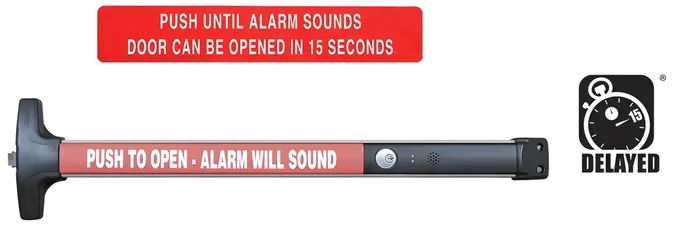

Detex V40EE-PSO-628-48 Delayed Egress Exit, 15 Sec Delay, 100DB Alarm, 48in, Satin Aluminum
Detex Corporation V40EE-PSO-628-48 Delayed Egress Exit offers an advanced solution for secure egress in commercial settings. This rim exit device features a 15-second delay, allowing for controlled exit while deterring unauthorized access with a powerful 100DB alarm. Designed to fit standard 48-inch doors, it combines aesthetic appeal with robust functionality, crafted from satin aluminum for durability. The V40 Series is particularly noted for its ease of installation, thanks to the patented mounting plate and strike locator system that eliminates the need for complex templates. This device accommodates both single and double doors, making it versatile for various applications. With a stainless steel, 3/4″ deadlocking Pullman-type latch bolt, it provides exceptional security, capable of withstanding over 1400 pounds of static pull force. Benefits include minimal door preparation, field-sized options, and easy rekeying of outside trims without removing the device. The device is non-handed and has a modular design, allowing for customization according to specific needs. Certified to A156.3, ADA, ANSI, and UL standards, the V40EE-PSO-628-48 is the ideal choice for professionals seeking reliable and economical panic hardware solutions.
Delayed Egress Exit With Out Power Supply, 15 Second Delay, 100DB Alarm, 48in, 628/US28 Satin Aluminum
Notice: The info below is not item specific.
The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available. Standard V40 Rim Device accommodates wide stile doors, 4″ or greater stile, and flush doors. For Narrow Stile doors, 2″ to 2 1/2″ stiles, specify V40xNS model which provides a 2″ longer device and a lower profile strike.
Benefits:
- Priced to be the best value for durable and attractive loss prevention panic hardware
- Patented mounting plate and strike locator replaces paper templates
- Minimal door prep saves time and money
- Fast and easy installation saves time and money
- Fits almost any door in any décor
- Outside trims are easily changed or rekeyed without removing device from door
- Angled end cap deflects damage away from device
Features:
- Covers a 161 door prep
- Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
- Non-handed
- Field sizeable
- 1/8 turn hex key dogging
- Heavy-duty ribbed aluminum rail extrusion
- High impact ABS and anodized surfaces
- Withstands over 1400 pounds of static pull force for greater security
- Modular design accepts a variety of outside trims and functions
- Standard and narrow stile pull trims available
Mechanical Options:
- CD – Cylinder Dogging
- HD – Hex Dogging (Std.)
- LD – Less Dogging
- 36 – Fits 36″ Door Width (Std.)
- 48 – Fits 48″ Door Width
- F – 3-Hour Fire Rated
- H – Hurricane Rated
- For Narrow Stile that fits 2″ Narrow stile glass door see V40xNS
- 99 – Surface Strike (Std.)
- 98 – Semi Mortise Strike
- Available with 628 Base Rail Extrusion (Std.)
- Available with 711 Base Rail Extrusion
- FC3 – Flexible 3’ Conduit Kit, mounts to device end cap
- FC10 – Flexible 10’ Conduit Kit, mounts to device end cap
- PT5 – Concealed mortise mount power transfer
- EH8 – Five-knuckle energy transfer hinge – 8 wires
Electrical Options:
- Exit Alarm (EA)
- Exit Alarm with 9 volt Battery (EB)
- Electric Dogging (ED)
- Delayed Egress (EE)
- Electric Integration (EI)
- Electric Latch Retraction with Request to Exit Switch (ER EX)
- Electric Switching (ES)
- Request to Exit (EX)
Accessories:
- SN1 – Sex Nut Fasteners
- GB2 – Glass Bead Kit
- NSK- Narrow Kit – for 2″ narrow stile glass door applications that must be added in the field
- Outside Trim
- Optional Sex Nuts or Security Torx Screws available
Technical Information:
- Door Types – Wood, Hollow Metal, Fiberglass or Aluminum
- Door Thickness – Fits standard 1-3/4″ – 2-1/4″
- Single Door Stile – Fits 3-1/2″ minimum stile doors with 99 surface strike (Std.)
- Pairs of Doors Stile – Fits 4″ minimum stile doors with 99 surface strike
- Door Stile – Fits 2″ narrow stile doors – specify NS
- Machine and Self-Drilling Screws (Std.)
Attributes
Access Type: Egress Delay
Alternate Codes: V40EE-PSO-628-48, V40EEPSO62848
Category: Exit Alarms, Panic Devices & Exit Alarms
Certifications: A156.3, ADA, ANSI, BHMA, UL Listed
Device Width: 48″
Door Application: Panic Devices & Exit Alarms
Door Type: Aluminum, Composite, Hollow Metal, Wood
Electrical Option: Delayed Egress, Less Power Supply
Exit Device Category: Rim Exit
Finish Code: 628
Finish Color: Aluminum, Brushed Aluminum, Satin Aluminum
Function: Exit Only
Grade: Grade 1
Handing: Field Reversible, Right Handed Reverse
Manufacturer: Detex Corporation
Series: Value Series V40
Strike Type: Surface Strike
Trim Option: Lever Trim
Weatherproof: No
