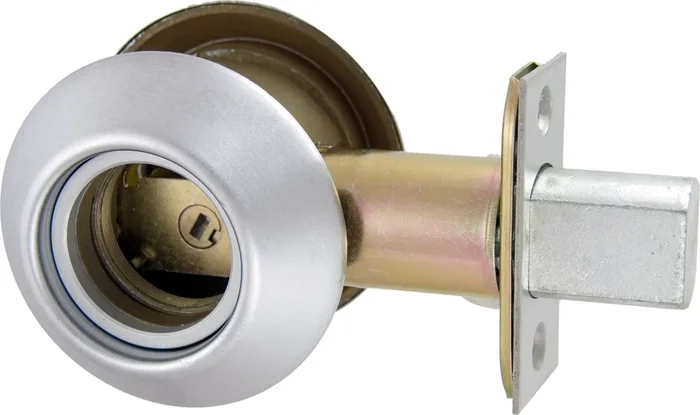

Deadbolt Double Cylinder 2-3/4in G1 LC – Ilco Unican Corporation

Description

Dormakaba 45-2-4-04-26D-0 Deadlock

• 1″ (25mm) bolt throw
• 8 finishes
• Fits doors 1-3/8″ (35mm) – 1-3/4(44mm)” thick
• Single cylinder, double cylinder and classroom function
• Available with cylinder or less cylinder

Features

• Standard 1″ (25.4mm) edge bore
• 3 backsets; 2″ (50.8mm), 2 3/8″ (60.3mm), 2 3/4″ (70mm)
• Single Cylinder model has field reversible handing
• Sold with or without Cylinder
• Accepts standard US thread mortise cylinder
• Cross bore 1 7/8″- 2 1/8″ (47.3mm – 54mm)
• Available Single Cylinder with ADA Turn Lever, Double Cylinder, Dummy and IC Core Housing
• Drive in or screw in bolts
• Operates with Lori® fan shaped or Adams Rite® Cam

Attributes

Alternate Codes: 111660, 45-2-4-04-26D-0, 4524-04-26D-0, 45240426D0, 453026D, 821553

Backset: 2-3/4″

Category: Commercial Deadbolts, Commercial Locks, Deadbolts, Double Cylinder, Double Cylinder (Commercial), Lock Sets

Cylinder Included: No

Cylinder Type: Mortise Cylinder

Door Bore Size: 2-1/8″

Door Thickness Max: 1-3/4″

Door Thickness Min: 1-3/8″

Finish: 626/US26D

Finish Color: Satin Chrome

Finish : Satin Chrome

Function: Double Cylinder

Grade: Grade 1

Handing: Non-Handed

Knob/ Lever Style: Keyed Both Sides

Latch Bolt Face Type: Square Corner

Latch Bolt Throw: 1″

Latch Bolt Type: Deadbolt

Lock Category: Deadbolts

Series: 4500 Series

Subtype: Deadlock

Supplier: Ilco

Type: Locks, Cylinders, Cores, Keyblanks

Resources

• 2018 Ilco Key Blanks & Auto Equipment Price Book
• 2018 Ilco Key Machines Price Book
• 2018 Ilco Replacement Hardware Price Book
• Cut Sheet
• Cut Sheet
